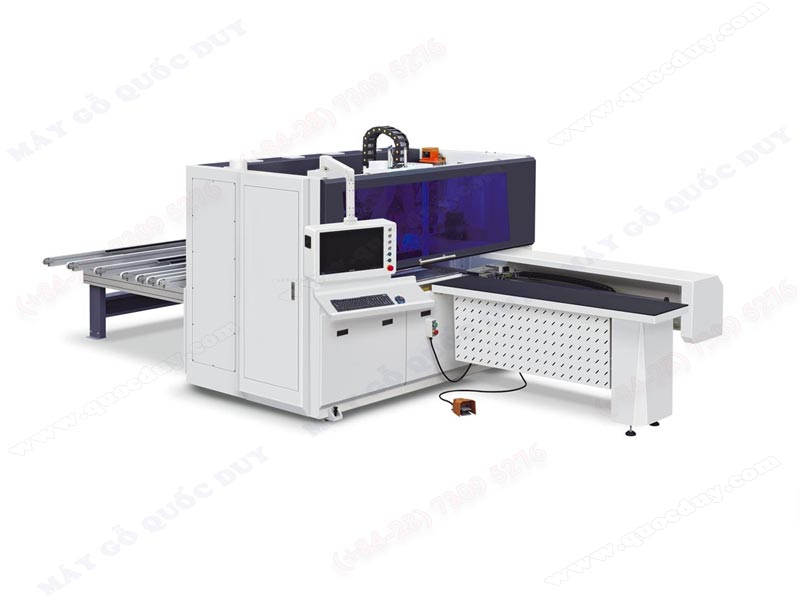

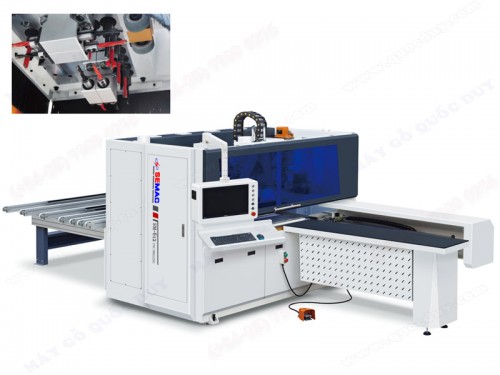

6 SIDED CNC BORING MACHINE
SIX CNC BORING MACHINE
Model: SM-612
| Specifications | |
|
Processing size range
|
|
|
Min. Width of work-piece
|
50 mm
|
|
Max. Width of work-piece
|
1200 mm
|
|
Max. Length of work-piece
|
5000 mm
|
|
Min. Length of work-piece
|
250 mm
|
|
Max. Thickness of work-piece
|
48 mm
|
|
Min. Thickness of work-piece
|
10 mm
|
|
Working Stoke & Max. Position speed
|
|
|
X axis
|
5000 mm - 130m/min
|
|
Y axis
|
1680 mm - 80m/min
|
|
Z axis
|
90 mm - 30m/min
|
|
U axis
|
5000 mm - 130m/min
|
|
V axis
|
1200 mm - 80m/min
|
|
W axis
|
100 mm - 30m/min
|
|
A axis
|
1260 mm - 30m/min
|
|
Drilling unit
|
|
|
Vertical spindles
|
12 ( X axis) + 9 ( Y axis)
|
|
Horizontal
|
8
|
|
Drilling box motor speed
|
3400rmp
|
|
Drilling motor power
|
2.2 kw
|
| Milling unit | |
| Milling motor power | 3.5 kw x 2 |
| Spindle speed | 18000 rmp |
|
Other data
|
|
|
Working table height
|
960 mm
|
|
Total power
|
19.2 kw
|
| Voltage | 380V/50Hz |
| Air pressure | 0.7-0.8Mpa |
|
Weight
|
3500kg
|
|
Operation eare size
|
5800 x 2840 x 2200mm
|
