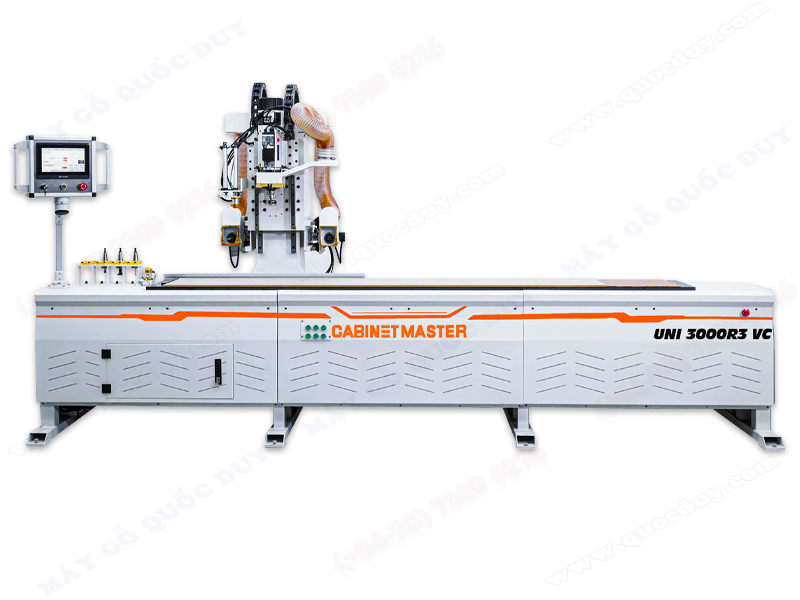

CNC MILLING & DRILLING MACHINE 2 DIRECTION 3 AXIS

Model: UNI 3000R3 VC

Feature

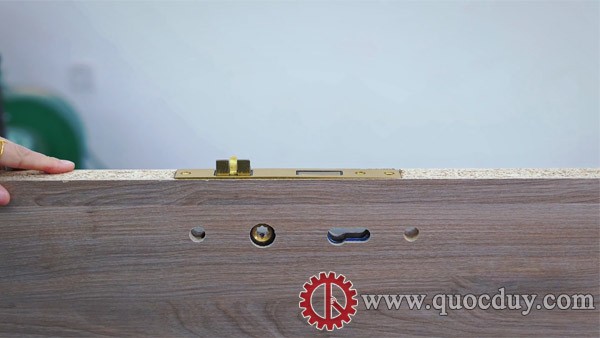

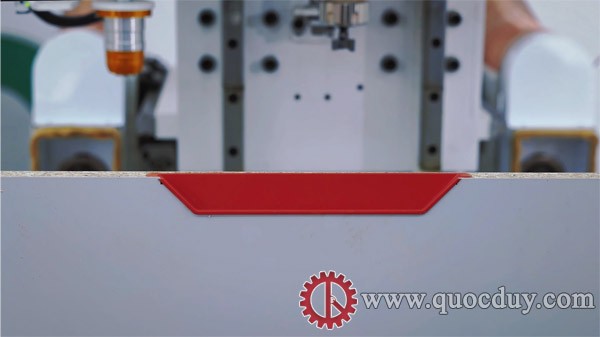

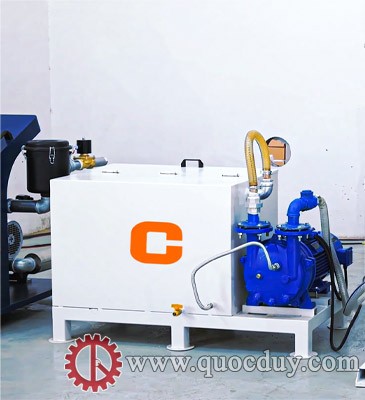

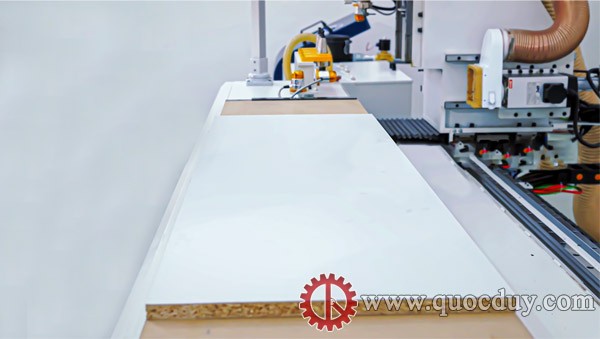

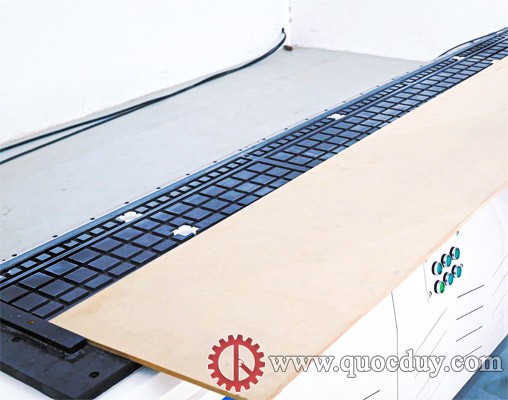

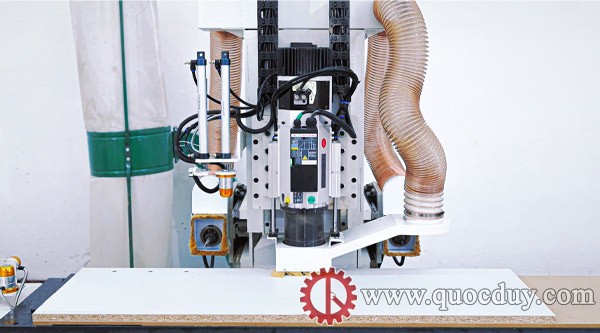

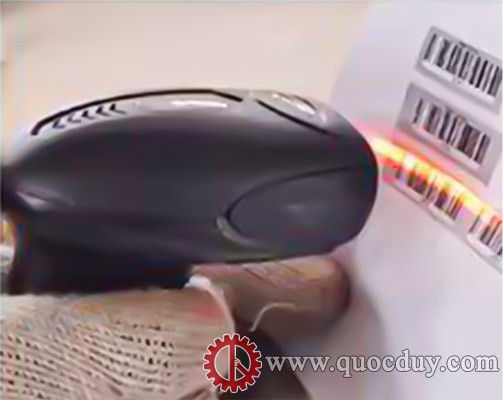

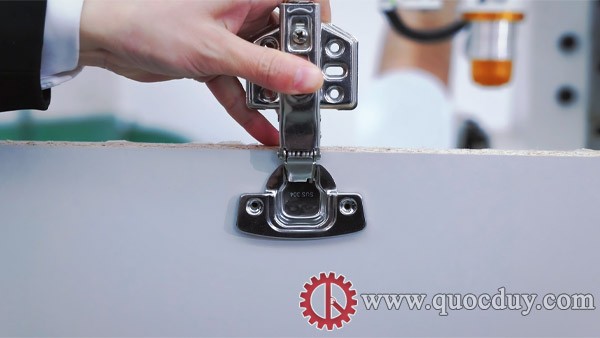

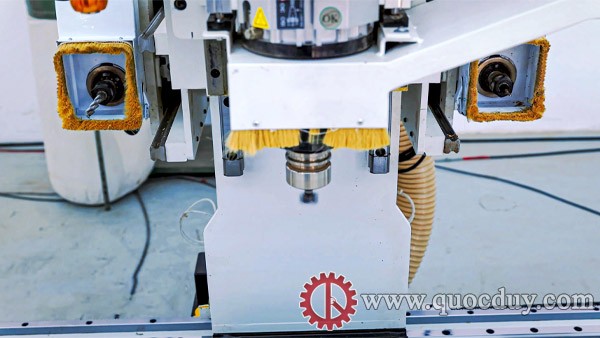

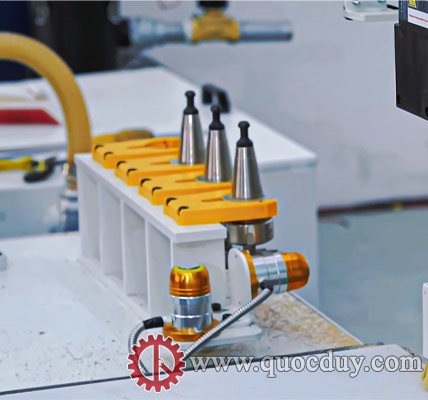

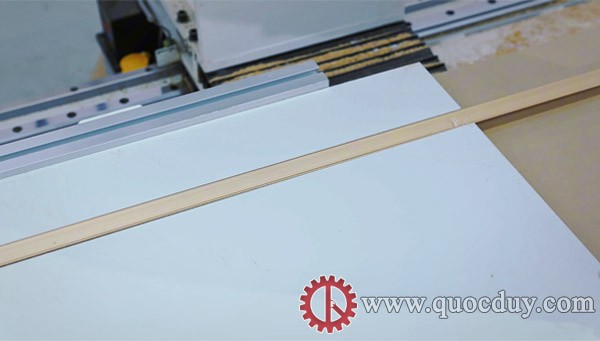

Integrated drilling processing mode: precision positioning hole scanning technology, lock punching, grooving, and panel processing with lengths up to 2800 mm. Integrating processing technology for modern door lock models.   Knife mechanism: the system is installed with automatic knife change mode (4 pieces).   Automatically senses workpiece thickness before machining. Allows scanning machining codes, laser scanning and importing machining files.   Working table structure: vacuum working table system.   Milling of door handles with unlimited models, all kinds of horn handles, arc handles, etc. Processing cam drilling on the side edges, milling grooves on the edges and top. Drilling of lock hinges, drilling of fixed groove holes, blind holes, various key holes and other types of combination product patterns.
Spectifications
Length table work	: 2800 mm
Wight table work	: 500 mm
Thickness table work	: 90 mm
Drilling depth	: 100 mm
Spindle power	: 9 Kw
Horizontal drilling capacity	: 3.5 Kw x 2
Voltage	: 380V 3P
Speed spindle	: 18 000 rpm
Air press	: 0.6 – 0.8 Mpa
Total power	: 23.5 Kw
Weight machine	: 1050 kg
Dimension	: 4000 x 1250 x 1900 mm
