CNC ROUTER MACHINE 5 AXIS
Model: SM-MASTERT2-16
| Features |
- The five-axis machining center can process spatial curved surfaces, special shapes, and complex workpieces through mechanized processing, quickly improving processing efficiency and shortening the processing process.
- Five-axis linkage can process various rotating surfaces and is suitable for large-scale three-dimensional curved surface processing;
- Tool changing in seconds (switching between tool heads in less than 1 second) improves the quality of processed products and processing efficiency;
- It can process flat surfaces, curved surfaces, inclined surfaces, oblique holes, two- and three-dimensional curved surfaces and three-dimensional lines. The workpiece blank is clamped and positioned at one time, and five-axis linkage milling, engraving, drilling, sawing and other functions can be realized in all directions in the five-dimensional space;
- Used for roughing and finishing of complex workpieces such as solid wood and special shapes;
|
| Specifications |
| Axis X |

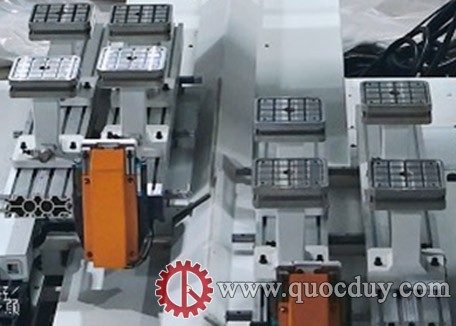

| Max. processing width of single table |
: 680mm × 2 piece |
| Max. processing width of double table linkage |
: 1450mm |
| Axis Y |
| Max. processing length |
: 1700mm |
| Axis Z |
| Max. processing height |
: 550 mm |
| Maximum speed |
| Axis X |
: 45m/min |
| Axis Y |
: 45m/min |
| Axis U |
: 45m/min |
| Axis Z |
: 45m/min |

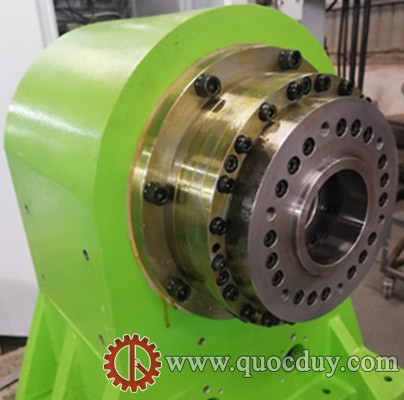

| Rotation axis |
| Axis A |
: continuous rotation |
| Axis C |
: ±380° |

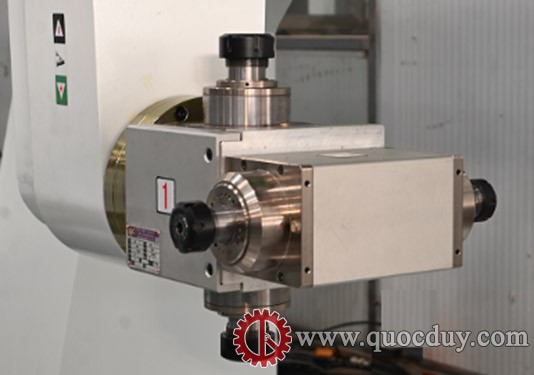

| Spindle power |
: 7.4KW × 1 piece - speed 24000rpm |
| |
: 4.5KW × 1 piece - speed 18000rpm |

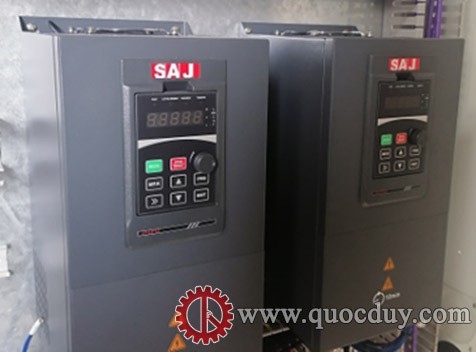

| Inverter |
: 7.5kw x 1 piece , 5.5kw x 1 piece |
| Total power |
: 30KW |

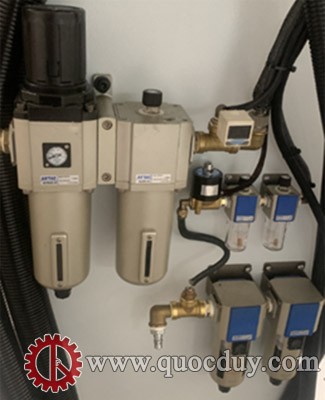

| Air pressure |
: 6 bar |
| Voltage |
: 380V/50HZ |
| Dimension |
: 3600×2800×3100mm |
