CNC 4-HEAD DRILLING AND MILLING MACHINE

Model: UNI 3000R4

Specifications
Maximum working lenght	: 2800 mm
Maximum working thickness	: 50 mm
Maximum working depth	: 120 mm
Z axis travel	: 175 mm
X, Y, Z Servo Motor	: 0.85 Kw x 3

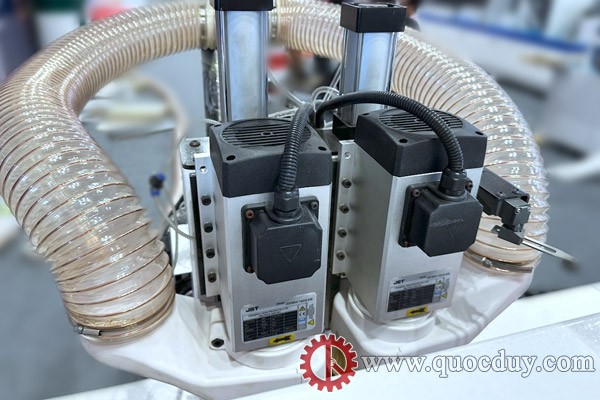

Vertical Drilling Power	: 3.5 Kw x 2
Horizontal Drilling Motor	: 2.2 Kw x 2
Spindle Speed	: 18000 rpm
Voltage	: 380V 50Hz
Compressed Air	: 0.6 – 08 Mpa
Total power	: 13.65 Kw
Dimensions	: 3600 x 1200 × 1450 mm
Weight	: 1000 Kg
