4 HEADS CNC NESTING MILLING MACHINE FULL LINE

Model: PRO 4H

Feature
Control System	: Syntec
Variable Frequency Drive	: Delta – Taiwan
Driver	: Syntec
Servo System	: Syntec

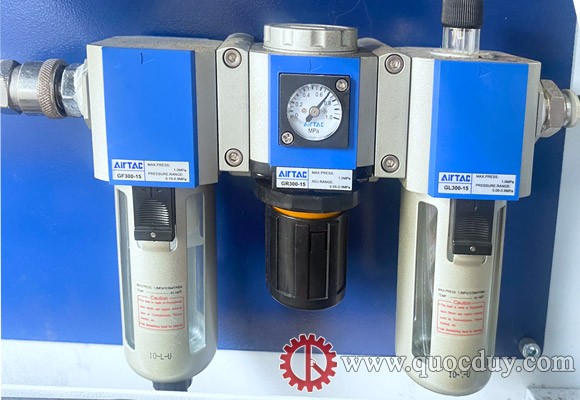

Pneumatic Cylinder	: Airtac – Taiwan
Linear Guide System	: Taiwan

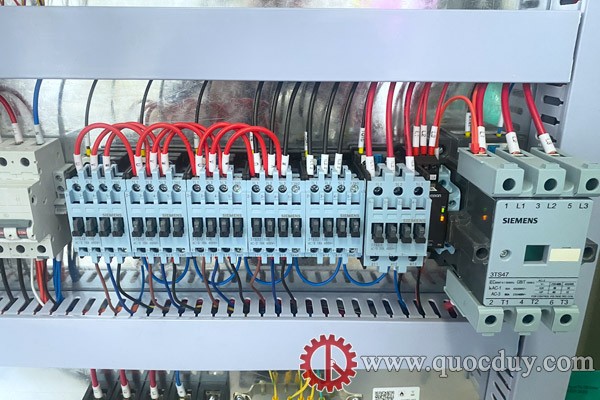

Equipment	: Siemens
Folding Spindle Unit	: Yes
Tool Probe	: Yes
Rulo	: 2 piece
Specifications
Travel axis X	: 1300 mm
Travel axis Y	: 2500 mm
Travel axis  Z	: 260 mm
Speed axis  X	: 60 m/phút
Speed axis Y	: 60 m/phút

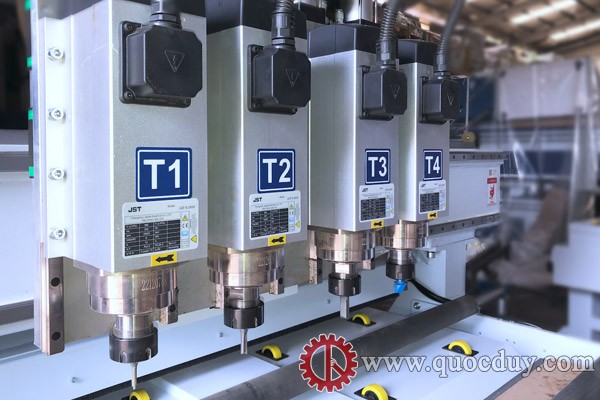

Motor spindle router	: 6 kw x 4
Speed main spindle	: 18000 vòng/phút

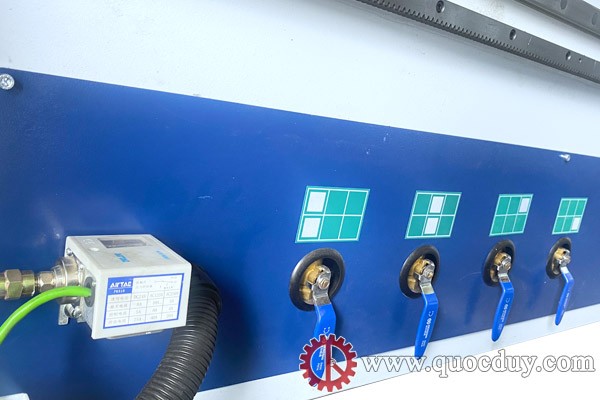

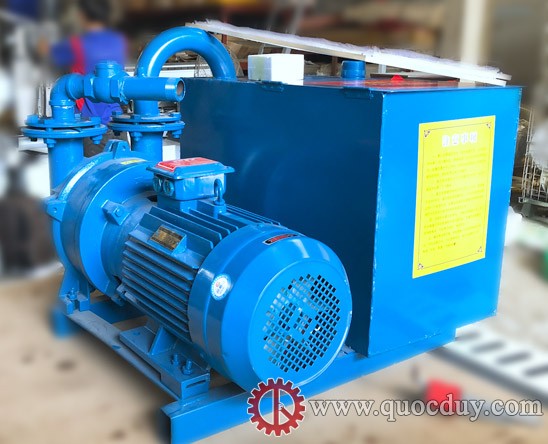

Vacuum	: 7.5 kw
Dust blower	: 150 mm
Air pressure	: 6 kg/m3
System control	: Syntec

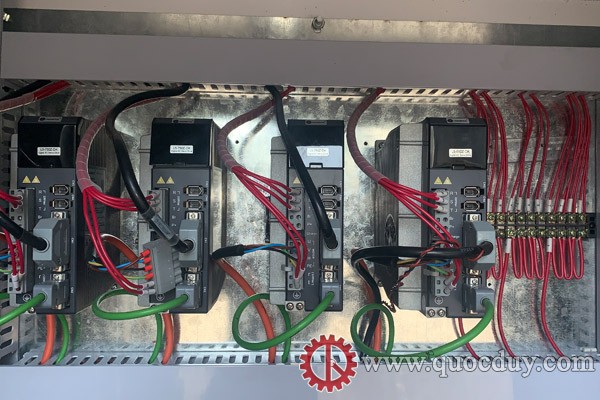

Motor servo	: 1 Kw – Syntec
Voltage	: 380V 50 Hz
Machine size	: 3900 x 2400 x 2000 mm
Net weight	: 3000 kg
HYDRAULIC LIFT TABLE
Maximum Load Capacity	: 2 tấn
Maximum Lifting Height	: 1200mm
Hydraulic Pump Motor	: 2HP
Machine Dimensions	: 2200 × 1000 × 500
Weight	: 800 kg
MATERIAL FEEDING CONVEYOR
Feeding Width	: 1300mm
Feeding Length	: 2500mm
Material Weight	: 50 Kg
