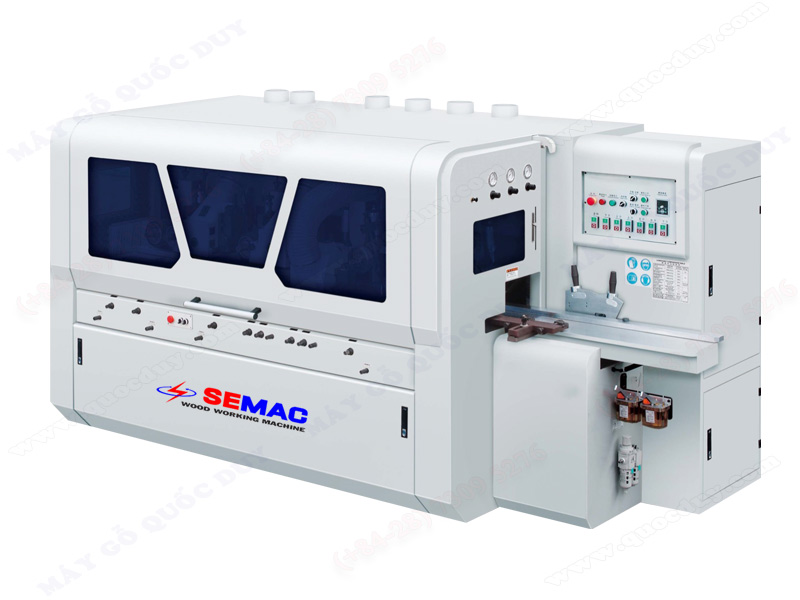

FOUR SIDE PLANER SIX KNIFE MACHIE
FOUR SIDE PLANER SIX KNIFE MACHIE
Model : SMVK-B618D
| Specification | |
|
Working width
|
: 25 – 180 mm
|
|
Working thickness
|
: 8 -130mm
|
|
Working table length
|
: 580/300 mm
|
|
Main shaft diameter
|
: Ø40 mm
|
|
Feeding speed
|
: 5-40 m/min
|
|
Main spindle speed
|
: 7000 r/min
|
|
Pneumatic source pressure
|
: 0.6 mpa
|
|
Feeding power
|
: 4 kw
|
|
1st upper shaft power
|
: 4 kw
|
|
Right side spindle
|
: 5.5 kw
|
|
Left side spindle
|
: 5.5 kw
|
|
1st lower shaft power
|
: 5.5 kw
|
|
2nd lower shaft power
|
:7.5 kw
|
|
2nd upper shaft power
|
: 7.5 kw
|
|
Overall power
|
: 40.25 kw
|
|
Machine size
|
: 3680 x 1550 x 1660 mm
|
|
Net weight
|
: 2900 kg
|
