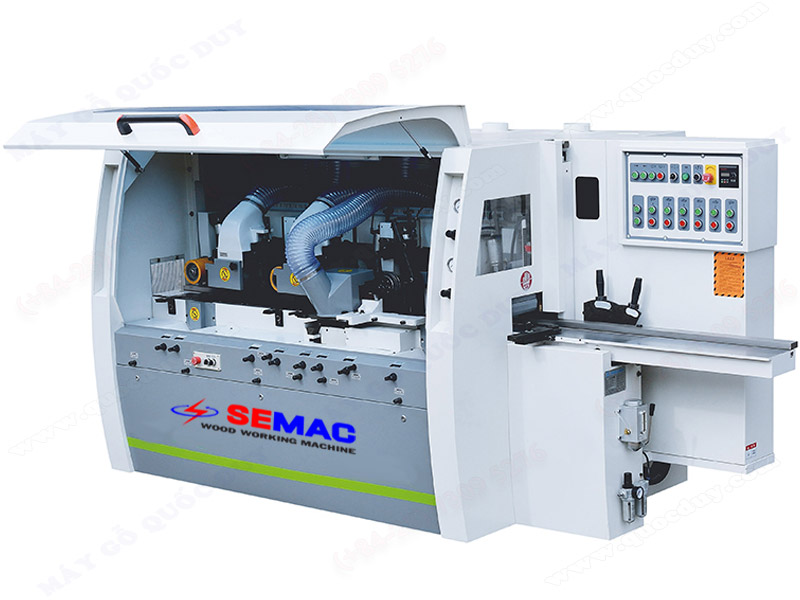

4 SIDE PLANER MACHINE
4 SIDE PLANER MACHINE
Model: ZHX-M420
| Specification | |
|
Planing width
|
: 25-200mm
|
|
Planing thickness
|
: 8-120mm
|
|
Operating Platform Length
|
: 1800mm
|
|
Feed speed
|
: 5-38m/phút
|
|
Spindle diameter
|
: Þ 40 mm
|
|
Spindle speed
|
: 6000 rpm
|
|
The Ist Bottom Spindle
|
: 5.5kw/7.5HP
|
|
The Ist Top Spindle
|
: 7.5kw/10HP
|
|
Right Side Spindle
|
: 5.5 kw/ 7.5HP
|
|
Left Side Spindle
|
: 5.5kw/7.5HP
|
|
Elevate horsepower
|
: 0.75kw
|
|
Feed horsepower
|
: 4 kw
|
|
Total Motor Power
|
: 28.75 kw
|
|
Right Side Spindle
|
: ø125-ø180mm
|
|
Left Side Spindle
|
: ø125-ø180mm
|
|
The Ist Bottom Spindle
|
: ø125 mm
|
|
The Ist Top Spindle
|
: ø125-ø180mm
|
|
Dust Diameter
|
: Ø140mm
|
|
Net weight
|
: 3370 x 1600 x 1700mm
|
