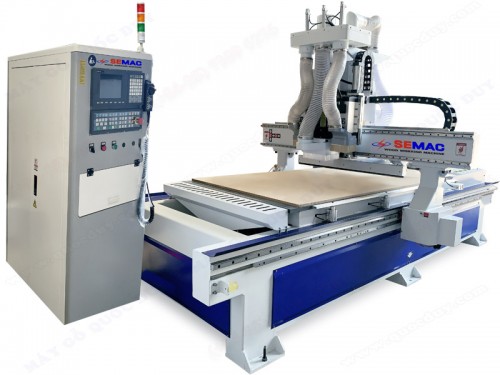

CNC ROUTER MACHINE

Model: SM-1325A2

may-cnc-router-sm-1325a2
Specifications
Working area
1300x2500x200mm
Repeat positioning accuracy
0.03 mm
The worktable
Vacuum worktable
Shaft drive mode
XY axis rack drive, Z axis screw drive
Shaft power mode
Panasonic servo motor 1000W
 (Z axis with brake function)
Max. Travel speed
35000 mm/min
Max. Working speed
20000 mm/min
Spindle power
6KW +4.5KW
Spindle speed
0-18000 r/min
Resolution
±0.05mm
System resolution
±0.001mm
Run command
G code
Vacuum pump
7.5 kw
Weight
2500kg
Product configuration
Control system
NC Studio NK260
Servo system
Panasnic servo motor
(Z axis with brake)
Spindle
6 kw air cooling high-speed spindle +4.5 KW

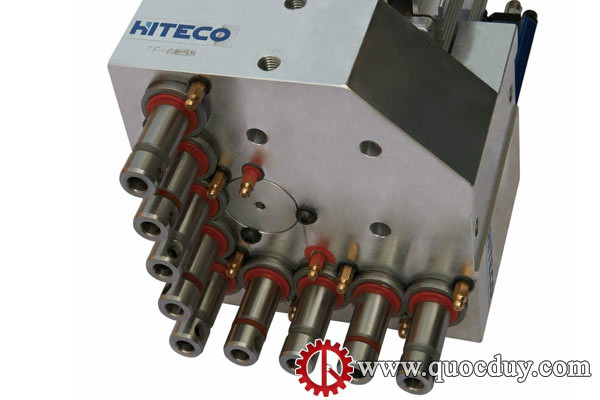

Drilling
Group Italy motor with l drilling group (5+4)
Rail
CSK 30
Rack
Germany HERION
Transmission
X, Y Axis: Germany HERION
Z-axis Taiwan ball screw
Inverter
7.5KW inverter SIFANG
(all imported inner parts)
Guide rail
X asix 25#Taiwan HIWIN brand ,
YZ axis 25# Taiwan HIWIN
Gantry structure
Thick heavier steel structures
Reducer
Germany ROUIST reducer
( or Japan Shimpo brand )
Electrical components
french Schneider Electric part
Machine body
Heavy steel structure, welding tempering aging
