FOUR PROCESS CNC ROUTE FOR CABINET MAKING

Model: SMSD 1325 A4

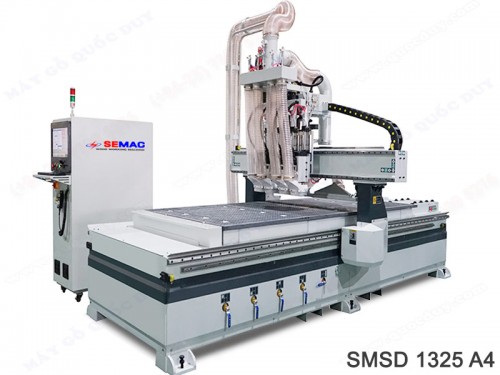

SMSD-1325-A4-may-phay-router-4-dau

Features

- The design of 4 machining heads performs functions such as drilling longitudinal holes, milling profiles, cutting boards according to different product shapes.

- Used to process office furniture, schools, apartments, product display shelves at stores.

- X Y Z motion axes are controlled by servo motor to ensure fast moving with high accuracy

Specifications
Working area
: 1220 x 2440 mm
X-axis travel
: 1300 mm
Y-axis travel
: 2800 mm
Z-axis travel
: 200 mm
Spindle power
: 6 kw  x 4
Spindle speed
: 6000-18000 rpm
Max air move speed
: 80 m/min
Working speed
: 25 m/min
Reponsitioning accuracy
: ±0.05 mm
Vacuum pump
: 7.5 kw
Table structure
: vacuum table
Vacuum cleaner power
: 4 kw
Total power
: 30 kw
Air pressure
: 0.6-0.8 Mpa
Voltage
: AC 380V, 50Hz
Inverter
: 11 kw
Machine size
: 3960 x 2400 x 2300 mm
