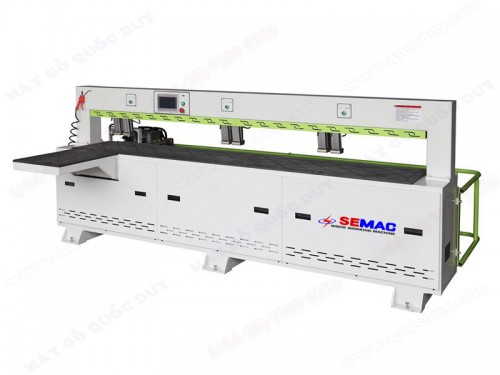

CNC DOUBLE HEAD HORIZONTAL DRILLING MACHINE
CNC DOUBLE HEAD HORIZONTAL DRILLING MACHINE
Model : SMCK-3000/2
|
Specification
|
|
|
Drilling size
|
: Ø 3 - 15 mm
|
|
Drilling hole depth
|
: 0 - 35 mm
|
|
Working thickness
|
: 10-50 mm
|
|
Total power
|
: 5.55 kw
|
|
Min. working width
|
: 70 mm
|
|
Working speed
|
: 60 m/min
|
|
Spindle speed
|
: 18000 rpm
|
|
Motor power
|
: 2.2 kw x 2
|
|
Working pressure
|
: 0.6 Mpa
|
|
Net weight
|
: 1 020 kgs
|
|
Machine size
|
: 3200 x 1850 x 1310 mm
|
