DOUBLE- HEAD CNC HORIZONTAL DRILLING

  • :SMXK 2400/2 CNC
  • :Semac - Quoc Duy
  • :12 months
  • :Call
  • :

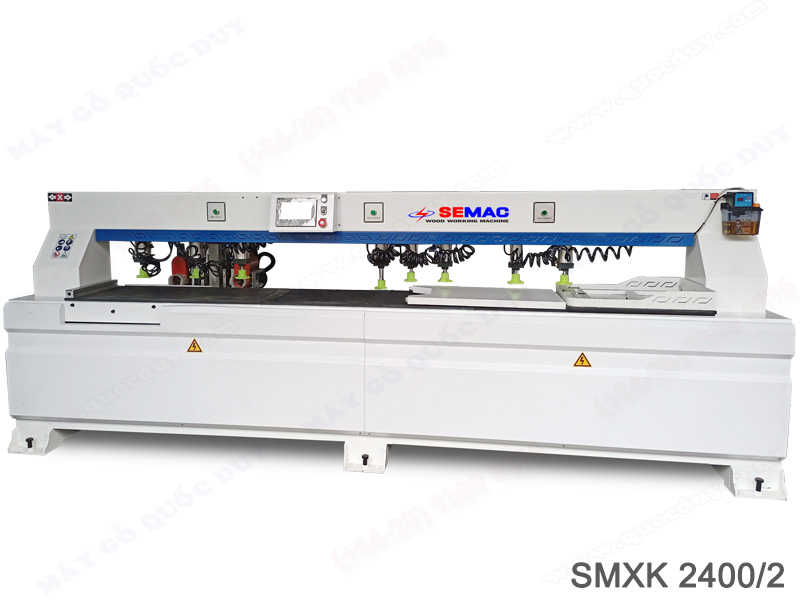

DOUBLE- HEAD CNC HORIZONTAL DRILLING

Model: SMXK 2400/2 CNC

SMXK-2400-2-CNC-may-khoan-cam-cnc-2-dau

Features

The machine performs a variety of machining such as: drilling round holes to create cam connections, milling grooves, running curved profiles, milling negative mortises, hitting positive mortises, etc.

Equipped with 2 machining heads, you can choose the right tool for processing needs

No need to repeat the calibration for machining positions

Product length sensor

Especially: with automatic Z-axis sensor up and down, helping the machine work in the X Y Z direction effectively, all 3 axes are controlled by a 0.75 kw servo motor for very high speed

Specifications
Max.working lenght
: 2500 mm
Max.working thickness
: 50 mm
Max.working depth
: 90 mm
Spindle motor
: 3.5 kw x 2
Spindle speed
: 0 - 18000 rpm
Empty working speed
: 80 m/min
Probe
: Germany
Net weight
: 1200 kg
