CNC DOUBLE END TENONER MACHINE
CNC DOUBLE END TENONER MACHINE

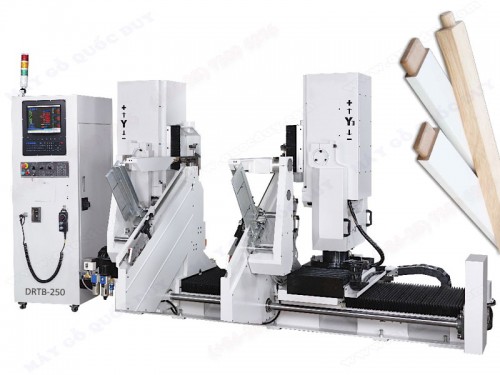

Model: DRTB-250
|
Innovative Crank Arm Drive Feeding Mechanism
 - The specially designed feeding mechanism is driven by two crank arms, that delivers wood from loader to the cutting area at a high speed.
- Simplified feed transmission not only reduces non-cutting time, but also minimizes trouble.
|
Throw-away Type Cutterhead
- The right and left spindles are fitted with one each throw-away type cutterhead, allowing for simultaneously cutting tenons at both ends of wood.
- Both cutterheads use tungsten carbide knife-insertsto save knife sharpening time. |
|
Specifications
|
|
|
Max. size of wood
|
50x145x2500 mm
|
|
Max. tenoning size
|
30x45x125 mm
|
|
Max. width of cut( Z-axis)
|
2500 mm
|
|
Max. length of cut( Z-axis)
|
1300 mm
|
|
X-axis feed rate
|
50 m/ phút
|
|
X1-axis feed rate
|
50 m/ phút
|
|
Y-axis feed rate
|
50 m/ phút
|
|
Y1-axis feed rate
|
50 m/ phút
|
|
Z-axis feed rate
|
0.667 m/ phút
|
|
Spindle speed
|
0 – 9000 vòng/ phút
|
|
Spindle motor
|
3.3 Kw x 2 cái
|
|
X1-axis servo motor
|
0.85 Kw (yaskawa)
|
|
X2-axis servo motor
|
0.85 Kw (yaskawa)
|
|
Y1-axis servo motor
|
0.85 Kw (yaskawa)
|
|
Y2-axis servo motor
|
0.85 Kw (yaskawa)
|
|
Z-axis servo motor
|
0.85 Kw (yaskawa)
|
|
Net weight
|
2650 Kg
|
|
Machine size
|
4900 x 1700 x 1930 mm
|
|
Packing size
|
5000 x 1850 x 2070 mm
|
