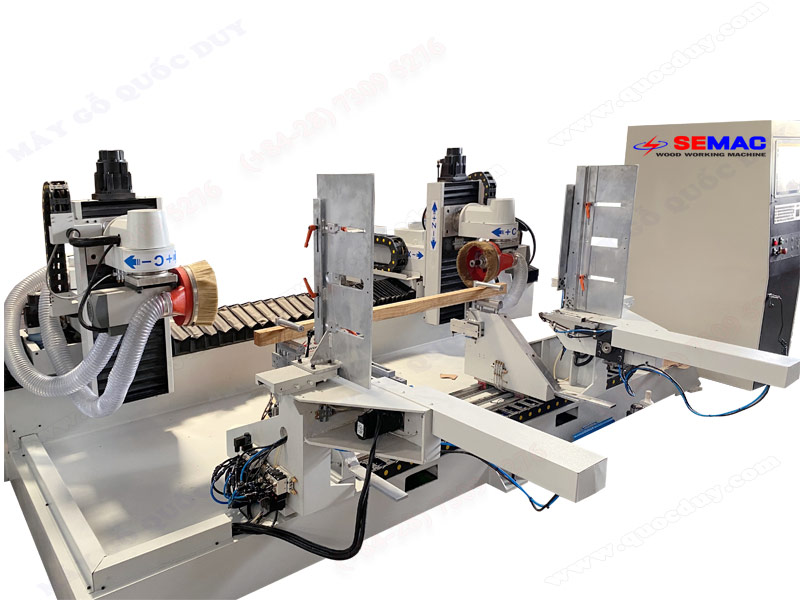

CNC AUTOMATIC DOUBLE END TENON MACHINE

Model: SM-CNC-200

Specifications
Working width	: 20 – 145 mm
Working length	: 250 – 2000 mm
Thickness working	: 12 – 50 mm
Thickness working tenon	: 8 -50 mm
Horizontal adjustable angle	: +5o, -20o
Vertical adjustable angle	: +45o, -5o
Spindle motor	: 5.5 kw x 2
Length regulating motor	: 0.37 kw
Motor servo X axis	: 1.3 kw x 2 (Delta)
Motor servo Y axis	: 0.75 kw x 2 (Delta)
Total power	: 15.5 kw
Spindle speed	: 12000 rpm
Working pressure	: 0.4 - 0.6 mpa
Net weight	: 1980 kg
Machine size	: 3500 x 1800 x 1500 mm
