SLIDING TABLE SAW

The machine is used in straight cutting, bevel cutting, and processing of boards to achieve a certain level of accuracy. With 2 saw blades, it effectively cuts MDF, Okal, MFC, laminate boards.
Code:SM 32E
Origin:Semac - Quoc Duy
WARRANTEE:12 month
Price:Call
Gift:

SLIDING TABLE SAW

Model: SM 32E

SM_32E

Features

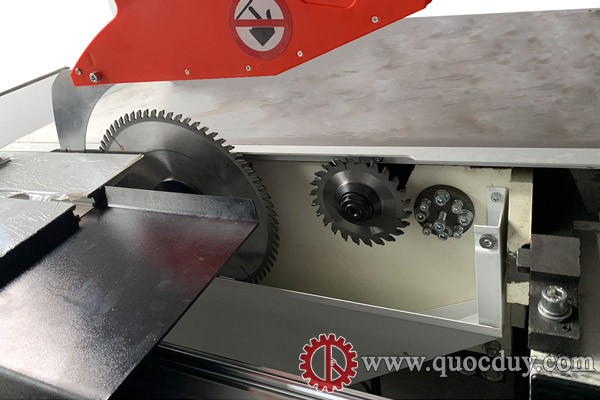

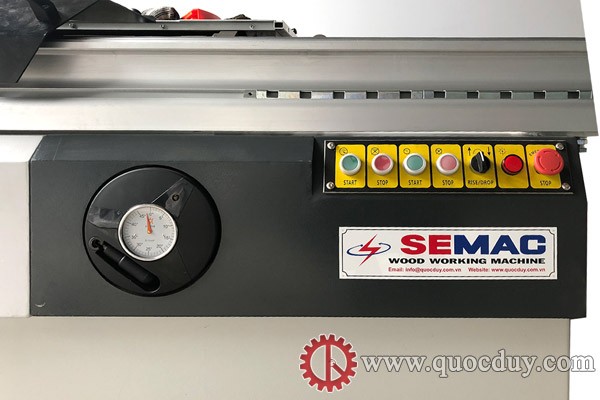

The machine consists of 2 saw blades: 1 main saw blade and 1 scoring saw blade. With this configuration, it prevent the panel from cracking after cutting and creates a beautiful cutting line. The machine is designed with a display angle meter, ensuring the operator adjusts the cutting angle accurately.
Specifications
Sliding table dimension	: 400 x 3200 mm
Main saw blade diameter	: Ø 250 x Ø 30 mm
Max cutting height with blade at 45⁰	: 70 mm
Max cutting height with blade at 90⁰	: 105 mm
Main blade speed	: 2890 rpm
Scoring blade speed	: 2830 rpm
Scoring saw blade diameter	: Ø 120 mm
Main motor power	: 5.5 Kw
Scoring motor power	: 1.1 Kw
Blade tilting adjustment	: ± 45⁰ (manual)
Blade up - down adjustment	: Automatic
Net weight	: 850 kg
Machine size	: 3300 x 3500 x 800 mm
