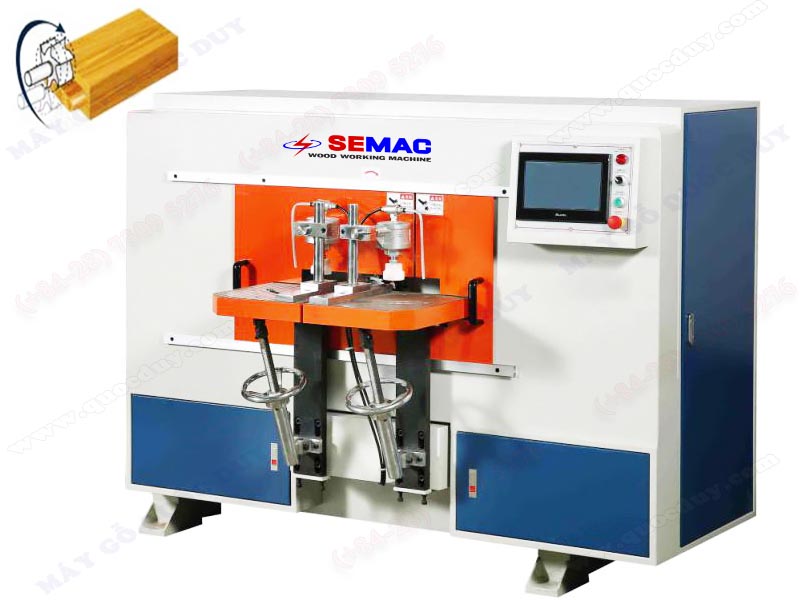

ROUND END TENONER CNC
ROUND END TENONER CNC
Model: SDS-140.CNC
| Specifications | |
|
Spindle speed
|
6800 rpm
|
|
Motor of spindle
|
5.5 Kw
|
|
Motor of axis X
|
1 KW
|
|
Motor of axis Y
|
1 KW
|
|
Travel of axis X(right table)
|
100 mm
|
|
Travel of axis X (left table)
|
100 mm
|
|
Travel of axis Y
|
140 mm
|
|
Pressure required
|
6 kg
|
|

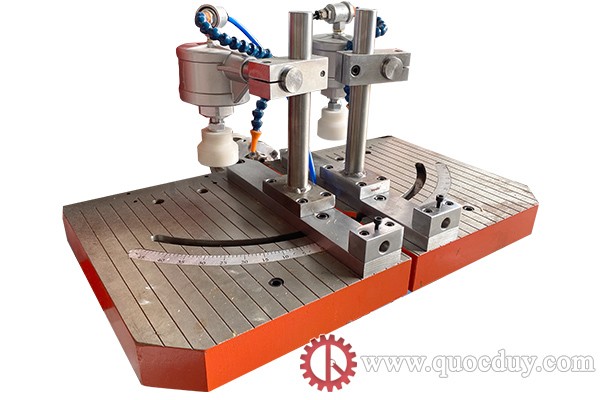

Hold down clamp
|
2 pcs
|
|
Machine dimension
|
1800 x 1100 x 1450 mm
|
| Video | |
