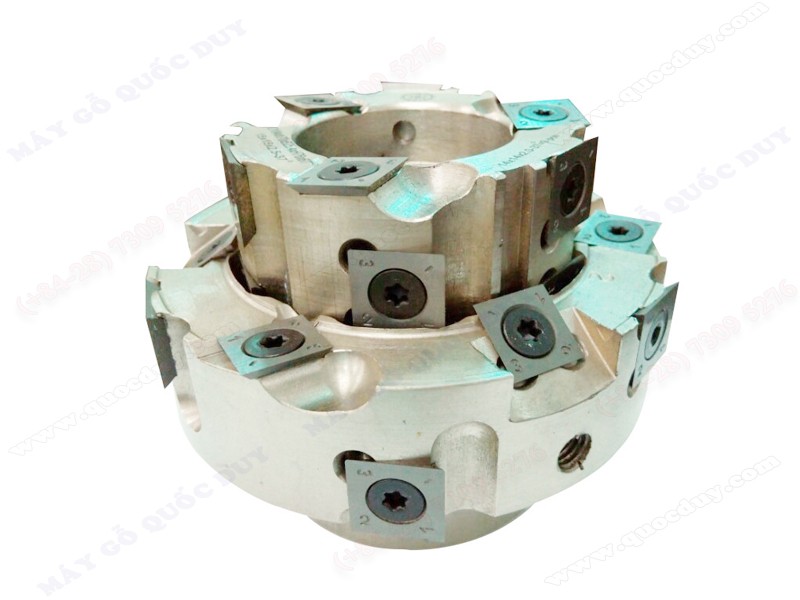

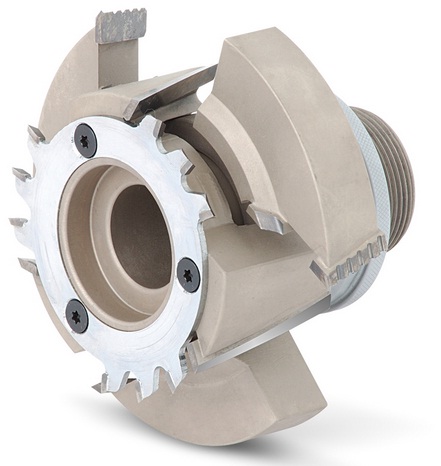

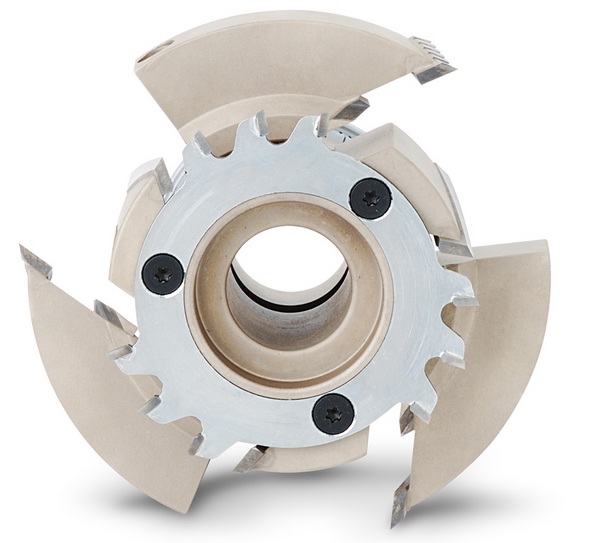

RECTANGULAR TENONER CUTTER
RECTANGULAR TENONER CUTTER

|
Item/Size
|
B(mm) | B(mm) | Ød(mm) | Z |
| Planing Cutter | 90 | 96 | 30 | 3 |
| Saw Blade | 91.5 | 2.8 | 50 | 9 |
| Chipping Cutter | 130 | 40 | 45 | 3 |

| FEATURES: |
|
Blade - Cutter to improve the smooth of cutting surface and prevent wood burning. |
|
Spiral chipping cutter can destroy the wood fiber and prevent end crackes. The tenoner can be well made at a high percentage. |
|
The tenoner length can be adjusted by the micro-adjusted positioning ring, the accuracy ban be 0.05mm it will save the time of the cutter adjustment. |
