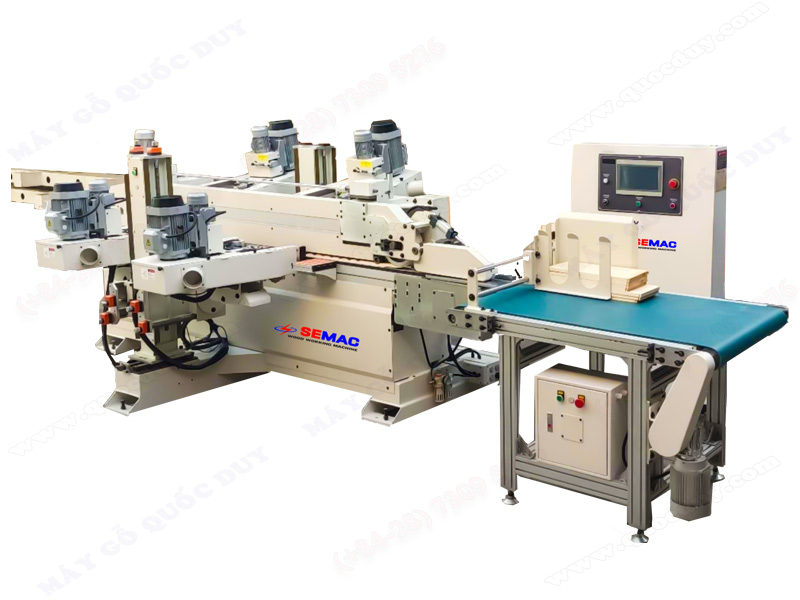

KITCHEN DOORS WARDROBE EDGE SANDING MACHINE

Model: SM K3S2W3

Feature

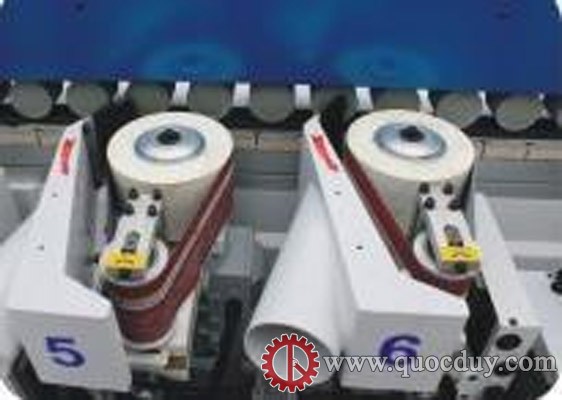

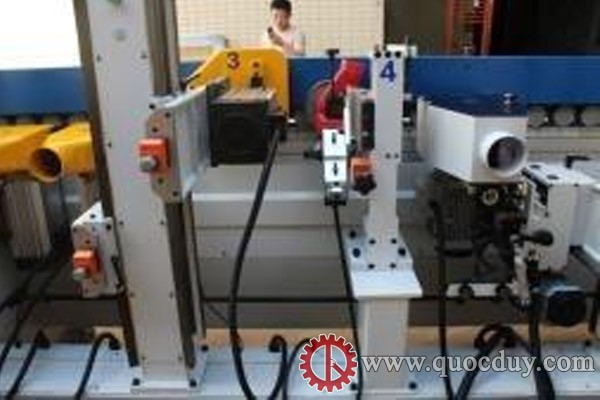

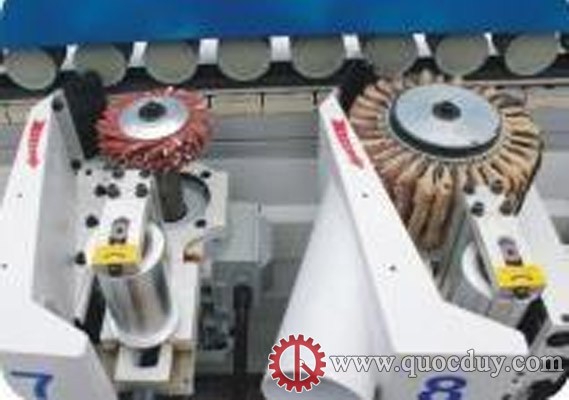

Part K1 is a lower slotting milling cutter, equipped with a 3.7KW high-speed motor, equipped with a shaping knife or saw blade to slot the bottom surface of the workpiece.   The K2/K3 unit is equipped with a 3.7KW high-speed motor equipped with a forming knife to mill both sides of the workpiece.   Parts S1 and S2 are triangular sanding racks, which can sand flat surfaces or create shapes on both sides of the workpiece, sanding belts can move up and down.   The sixth, seventh, and eighth parts are the left and right multi-function sanding heads, which can sand or polish flat surfaces or shape the two edges of the workpiece, equipped with an up and down oscillation function.   Each sanding unit can be independently controlled and adjusted in speed by an inverter. The entire machine uses a PLC control program, making adjustments quick, accurate and convenient.​
Specifications
Max. Working width	: 450mm
Min. Working width	: 100mm
Maximum Working width	: 450mm
Minimum Working width	: 100mm
Maximum Working height	: 80mm
Working table height	: 850mm
Feed speed	: 0-18m/min
Feed motor	: 3.7kw , 1400 rpm
Sanding bed motor	: 2.2kw x 2, 1400 rpm
Sanding bed oscillation motor	: 0.09kw x 2
Sanding motor	: 1.5kw x 3 , 1400 rpm
Milling cutter motor	: 3.7kw x 3, 6000-9000 rpm
Voltage	: 380V
Total power	: 24kw
Dust collection diameter	: Ø 100mm
Machine size	: 4600 x 1600 x 1500mm
Weight	: 4500kg
