AUTOMATIC STRAIGHT - INCLINED EDGE GLUING MACHINE

Model: SM-480PUR

Feature

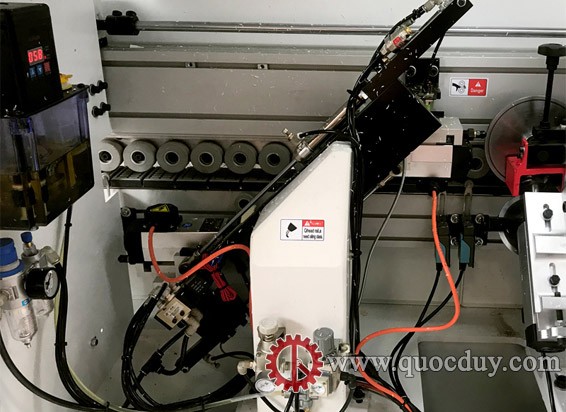

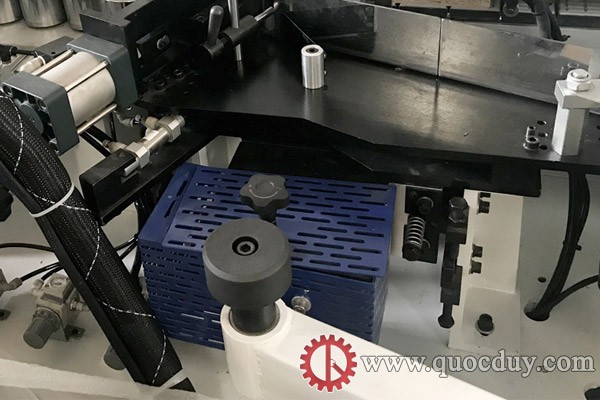

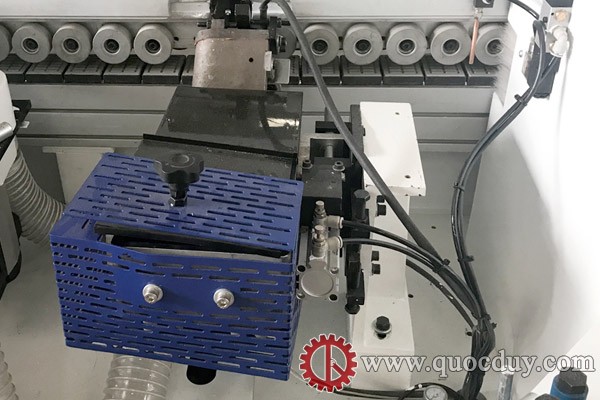

The machine can be glued at only 3 angles: straight, partially tilted and 45 degrees inclined. 45 degree inclined chamfer milling system. The machine is designed with 3 glue pots: 1 pot of straight edge glue, 1 pot of inclined glue, 1 pot of PUR glue to stick straight (option) Milling to extract the glue thread before gluing at a 45 degree angle. The operation to change the straight and slant paste mode only needs 1 touch operation. Large screen working, displaying all machine parameters while the machine is in operation. Help workers easily adjust and change parameters accordingly. The machine can glue both EVA glue and PUR glue. Edge banding machine SM-480PUR is equipped with high-class components: Siemens, Schneider, Airtac, Delta... Automatic oil pump system protects the machine during its operation.
Specifications
Thickness of inclined	: 17 – 25 mm
Panel thickness	: 10 – 60 mm
Motor power	: 22 kw
Speed feeding	: 12m/min
Edge banding tape thickness	: 0.4~3mm
Panel thickness	: ≥ 80 mm
Air pressure	: 0.8 mpa
Net weight	: 3000 kg
Dimension	: 8300×600×1400 mm
Specifications of spray PUR system
Voltage	: AC220V/50HZ
Heating capacity	: 7.5KW
Inner diameter of rubber	: 280mm
Speed	: 60rpm
Diameter of rubber	: φ8mm
Air pressure	: 0.4～0.8MPa
System control	: PLC +  Touch screen
Temperature control range	: Temperature -180℃
Heating time	: 25 min
Maximum glue injection pressure	: ≤50kg/cm2
Heat retention function	: Not
Overheating notification	: Yes
Notice where the temperature is too low	: Yes
Notification of running out of glue	: Yes
Roller stroke	: Max 600 mm
Net weight	: 250kg
Dimension	: 1040 × 550 × 1250 mm
