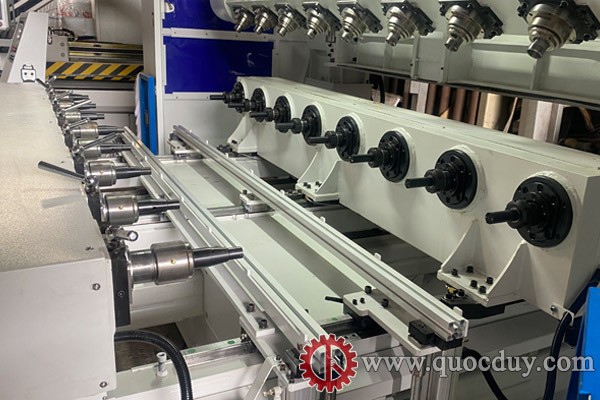

32 HEADS CNC LATHE – MILLING MACHINE

Model: MRS8X4SE D1200

Feature

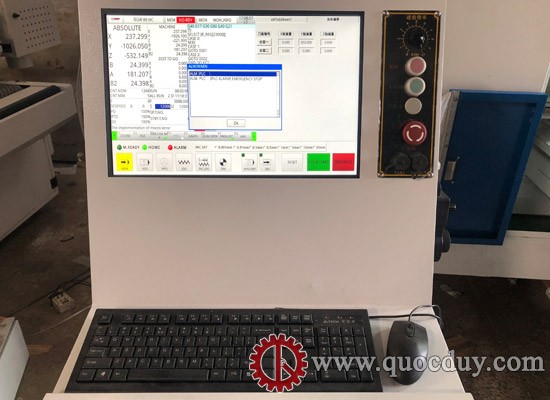

Specializes in processing chair legs, table legs,... integrated with multi-functional milling, turning, engraving, and effectively processing complex shapes. LNC sytem – Taiwan Designing 32 cutter heads, processing 8 workpieces at the same time, 360 degrees arbitrary angle positioning machining. Can be equipped with various types of tools, saving time, increase maximum processing efficiency. Processing at high speed with high precision.
Specifications
Working area	: 1200 x 230 x 230 mm
Max. X travel	: 600mm
Max. Y travel	: 1300mm
Max. Z travel	: 400mm
Max. A travel	: ± 180°
Max. B travel	: No limited
Motor power	: 5.5 Kw x 8pcs, 1800rpm
	: 3.7 Kw x 8pcs, 2400rpm
Voltage	: 380V, 3pha
Air pressure	: 6 bar
Net weight	: 6500 Kg
Machine size	: 3000 x 4200 x 2450 mm
