OSCILLATION MORTISER RECTANGULAR TENONER CNC

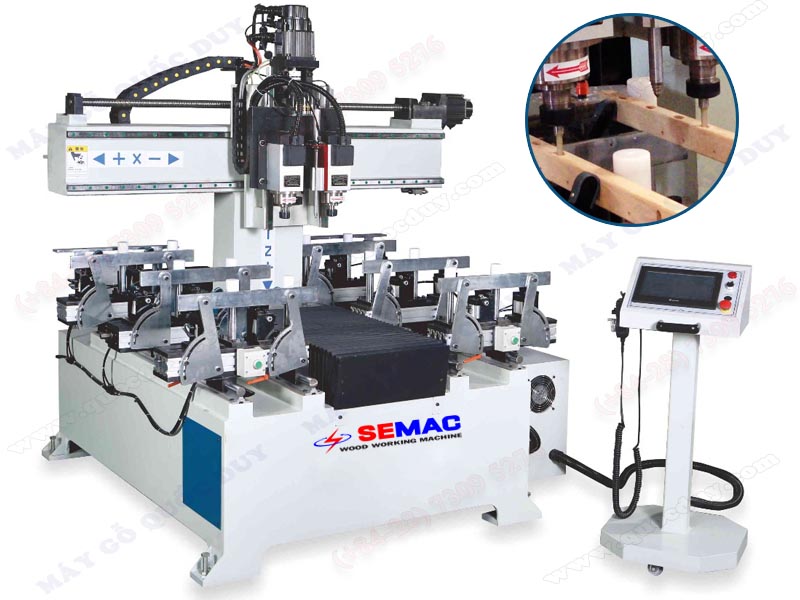

OSCILLATION MORTISER RECTANGULAR TENONER CNC
Model: SDC-1200-2/2000-2
| Specifications | ||
|
MODEL
|
SDC-1200-2
|
SDC-2000-2
|
|
Max. X-Axis stroke
|
1100 mm
|
1200 mm
|
|
Max. Y-Axis stroke
|
1200 mm
|
2000 mm
|
|
Max. Z-Axis stroke
|
220 mm
|
220mm
|
|
Wheelbase of cutter heads
|
200mm
|
200 mm
|
|
Spindle Speed
|
18000 rpm
|
18000 rpm
|
|
Motor of spindle work
|
3.7 KW x 2
|
3.7
KW x 2
|
|
Motor servo
|
1.0 KW x 3
|
1.0 KW x 3
|
|
Motor of travel
|
1800x1900x2000mm
|
3000x2000x1900mm
|
|
Net weight
|
1600 kg
|
2000 kg
|
