MULTI BLADE RIPSAW MACHINE
MULTI BLADE RIPSAW MACHINE

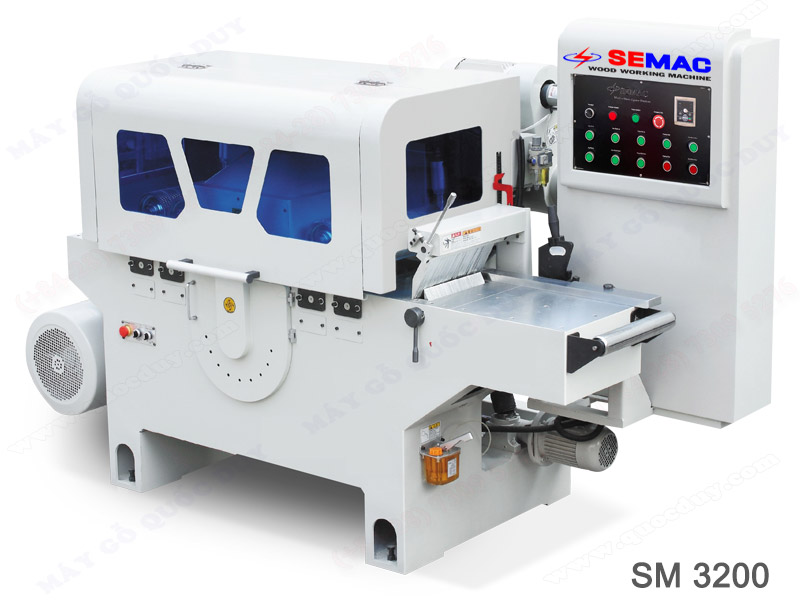

Model: SM 3200
|
Features
|
|
|
- Large working width with many bars at the same time high productivity - Efficient workpiece fixation roller ensures precise roll stability - High-power cutting motor, super-fast working speed, smooth straight cutting line - Electric system schneider - The system of lifting and lowering the table by inverter Simphoenix |
|
| Specification | |
|
Cutting thickness
|
: 10 – 100 mm
|
|
Max. Cutting Width
|
: 320 mm
|
|
Min. Working Length
|
: 360 mm
|
|
Spindle Dia
|
: 70 mm
|
|
Spindle saw Dia
|
: Ø305 - Ø 355
|
|
Spindle speed
|
: 2955 rpm
|
|
Feeding speed
|
: 3 – 22 m/min
|
|
Total motor power
|
: 30 kw
|
|
Feeding motor power
|
: 5.5 kw
|
|
Voltage
|
: 380 V
|
|
Dust outlet diameter
|
: Ø 150mm x2
|
|
Weight
|
: 1900 kg
|
|
Overall size
|
: 2700 x 1200 x 1700
|
