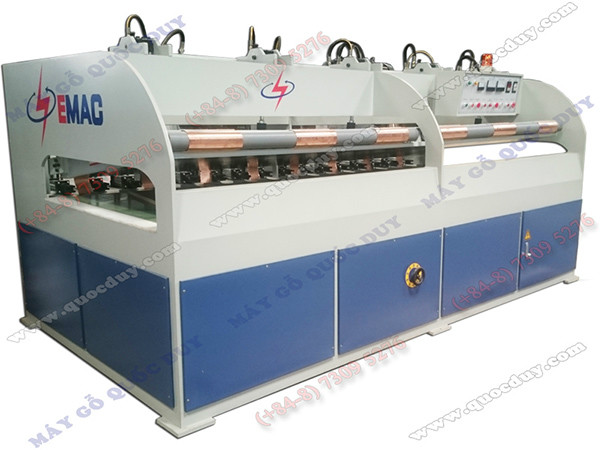

HIGH FREQUENCY WOOD BOARD JOINING MACHINE
HIGH FREQUENCY WOOD BOARD JOINING MACHINE

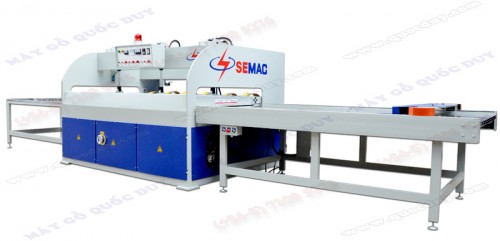

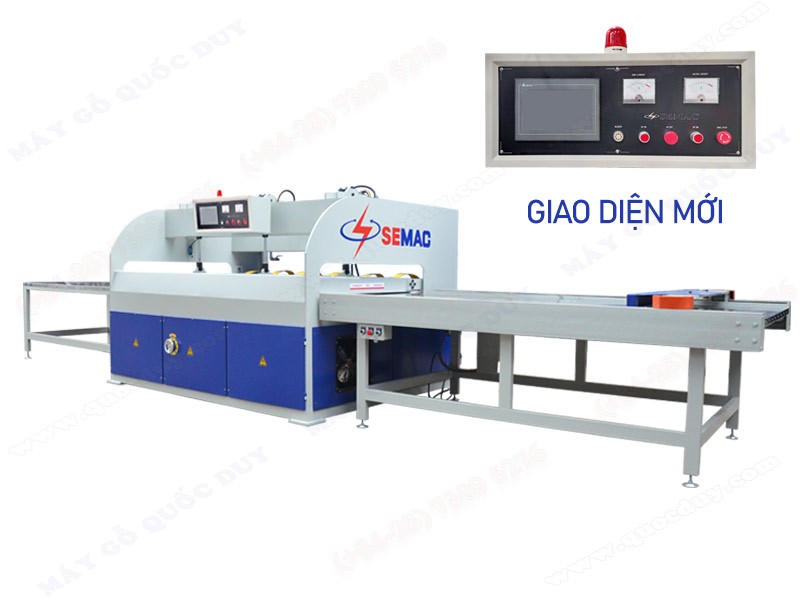

Model: SM84H35/SM124H35
| Specifications | ||
|
Model
|
SM84H35
|
SM124H35
|
|
Main voltage
|
3 þ 380 (V+/- 5% )
(50 Hz)
|
3þ, 380V(+ - 5%)
(50 hz)
|
|
Input power
|
50 KVA
|
50 KVA
|
|
Pressed out products
|
1220 x 2440 mm
|
1220 x 3660 mm
|
|
Max. Height pressed
|
80 mm
|
80 mm
|
|
Min. Height pressed
|
15 mm
|
15 mm
|
|
Control way
|
Hydraulic
|
Hydraulic
|
|
Hydraulic motor
|
5 HP
|
7,5 HP
|
|
Countertops
|
Non-stick coating the top and bottom
|
|
|
Number of cylinders
|
Horizontal 12 pcs
Vertical 3 pcs
|
Horizontal 16 pcs
Vertical 5 pcs
|
|
Machine size
|
7650x2100x2150 mm
|
|
|
N.W
|
5000 kg
|
8000kg
|
|
Feed motor
|
1.5 HP
|
1.5 HP
|
|
- Type of glue used: Use the glue one-component and two-component
(note: two-component adhesive can only be used for about 20-25 minutes back, if after the time on the adhesive will lose its effect, glue does not stick)
- Time pressed finished 1 plate (From the table above presses down on the table until the countertops go up)
+ 2-3 min / plate (thickness of 30mm or less).
+ 3-4 min/ plate (thickness 30 – 75 mm)
+ 4– 5 min for thickness 75 - 90 mm
|
||
