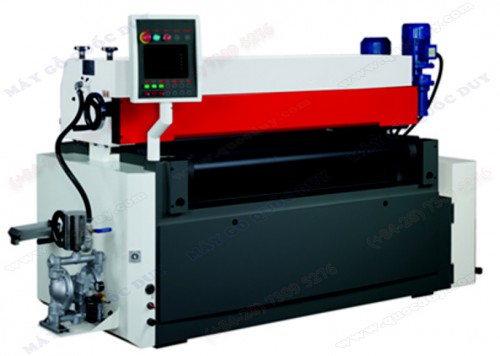

FACTORY PAINT ROLLER
FACTORY PAINT ROLLER
| Specifications | |||
|
Model
|
TS- W20T
|
TS- W30T
|
TS- W40T
|
|
Max. width of coating
|
610 mm
|
920 mm
|
1290 mm
|
|
Workpiece thickness range
|
2- 80 mm
|
||
|
Min.length of coating
|
300 mm
|
||
|
Coveyor belt speed
|
10-20M/min
|
Other speeds are available
|
|
|
Coating rollers size
|
Ø205x 780 mm
|
Ø205x1100 mm
|
Ø205x1450 mm
|
|
Smoothing roller size
|
Ø150x 780mm
|
Ø150 x1100 mm
|
Ø150x 1450mm
|
|
Coathing roller motor
|
0.75 Kw
|
0.75 Kw
|
1.5 Kw
|
|
Smoothing roller motor
|
0.37 Kw
|
0.37 Kw
|
0.75 Kw
|
|
Coneyor rollers motor
|
0.75 Kw
|
0.75 Kw
|
1.5 Kw
|
|
Elevation motor
|
0.18Kw
|
||
|
Pump
|
3/8”
|
3/8”
|
3/4”
|
|
Machine size
|
1080x1770x1440 mm
|
1080x2100x1440 mm
|
1080x2385x1440 mm
|
