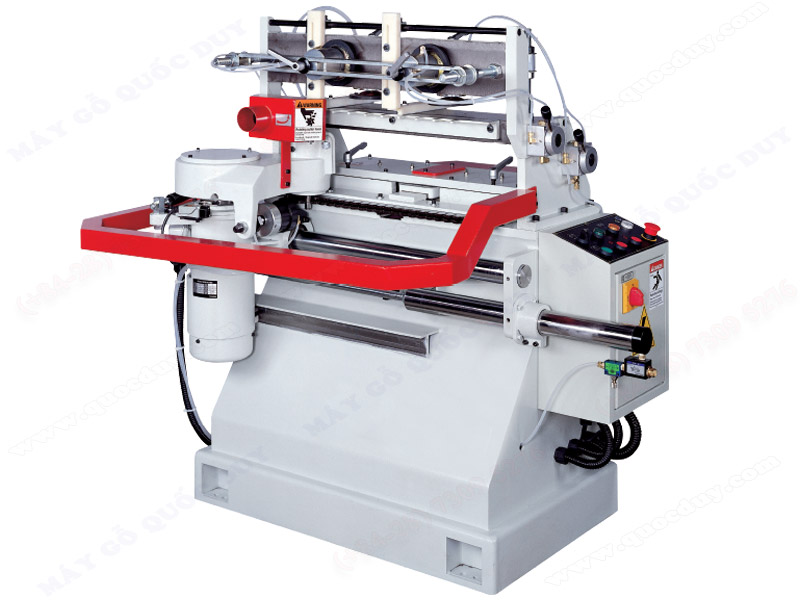

CONTINUOUS DOVETAILER
CONTINUOUS DOVETAILER
(FOR STRAIGHT BOARD)
Model: YC-480
| Feature | |
|
+ Cuts dovetailed tenons/mortises simultaneously for accurate jointing + Dovetailed width and depth are adjustable. + Continuous tenoning motion + Automatic motion cycle provides efficient, economical operation + High spindle speed 20.000 rpm + Simple to operate, simple to maintain + 3 feed speeds change suitable for cutting various wood materials |
|
|
Specifications
|
|
|
Tenon thickness
|
10 – 20 mm
|
|
Tenon width
|
10 – 18 mm
|
|
Tenon depth
|
10 – 20 mm
|
|
Spindle vertical adjustment
|
30 mm
|
|
Max. workpiece sizes
|
1500 x 480 mm
|
|
Collect chuck capacity
|
f12 mm
|
|
Number of air clamps
|
4 pcs
|
|
Spindle speed
|
21.500 rpm
|
|
Spindle motor
|
2 HP
|
|
Working air pressure
|
6 kg
|
|
Machine size
|
1270 x 780 x 1330 mm
|
|
Packing size
|
1370 x 880 x 1450 mm
|
|
Net weight
|
480 kg
|
|
Gross weight
|
600 kg
|
