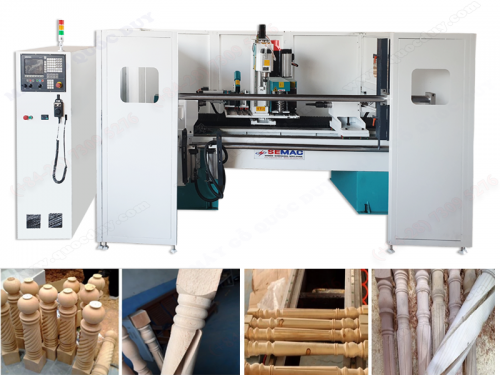

CNC WOOD LATHE CENTER
CNC WOOD LATHE CENTER
Model: SM-TJ-1220
|
Specifications
|
|
|
Power supply
|
380 V - 3 phase
|
|
Max turning diameter
|
200 mm
|
|
Max processing length
|
1200 mm (can custom longer size)
|
|
Air Pressure
|
2-10 mpa
|
|
Tolerance
|
0.2 mm
|
|
Max feed rate
|
100 mm/s
|
|
Speed
|
0-3000 rpm
|
| Total power | 25.5 Kw |
| Net weight | 2500 kgs |
| Electric cabinet size | 1000 x 500 x 1700 mm |
| Machine size | 3550 x 2400 x 1900 mm |
|
+ Monolithic cast iron frame
|
|
|
+ Whole cover for the machine to prevent dust and has separate space
|
|
|
+ High precision Ball screw transmission
|
|
|
+ High Precision Taiwan Hiwin 25mm Square Rail with X,Y,Z axis
|
|
|
+ X,Y axis with Japan YASKAWA 1.5KW Servo motor and Z axis with 750W servo motor controlled by 3 drivers YASKAWA
|
|
|
+ Lubrication system for X,Y,Z axis
|
|
|
+ Air cooling spindle with 5.5kw Servo motor
|
|
|

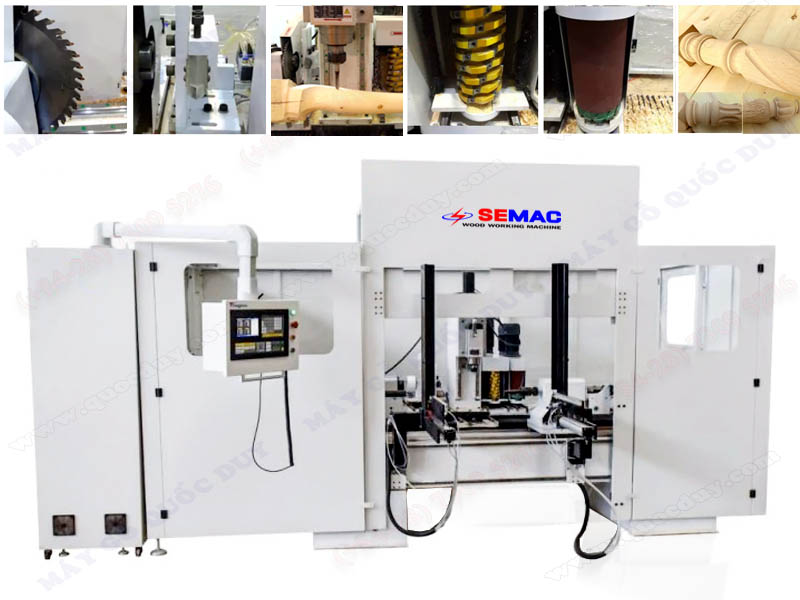

+ Includes 5 working heads with different functions
|
|
|
1 set band saw
|
|
|
1 pc turning blade (subject to change)
|
|
|
1 sanding head
|
|
|
1 tool lathe
|
|
|
1 tool planer
|
|
|
+ One suit of working tools
|
|
|
+ Shenzhen converter
|
|
|
+ Professional 4 axis software for engraving,milling,sanding etc
|
|
|
+ Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel
|
|
|
+ Weihong control system
|
|
|
