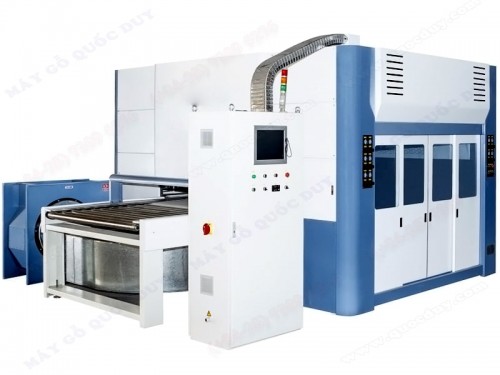

AUTOMATIC SPRAYING MACHINE
AUTOMATIC SPRAYING MACHINE
Model: SPM-1300PU
| Feature | |
|
Spraying system  - Reciprocators adopt JAPAN PANASONICA control system. The max. speed can reach 100m/min. there are 2 reciprocators of each machine.
- Every reciprocator can equip 4 spraying guns and a relevant material-supply pump.
- The grating scanner at the entrance can measure the width of work piece to make the stroke of guns and turn on/off time more exact. And at the same time the waste is reduced. The grating adopts Italy REER brand.
- Using PLC control system makes it a simple and intuitive instrument to see. Air cycle system
- Double filtering of the inlet air and closed spraying room make the air cleaner in the spraying room.
|
|
| Specifications | |
|
Max. spraying width
|
1300mm
|
|
Max. thickness of work piece
|
80mm
|
|
Overall dimension
|
5500*4450*2500mm
|
|
Max. Feeding speed
|
8m/min
|
|
Air pressure
|
0.5-0.8 M pa
|
|
Total power
|
14kw
|
|
Weight
|
4000kg
|
|
