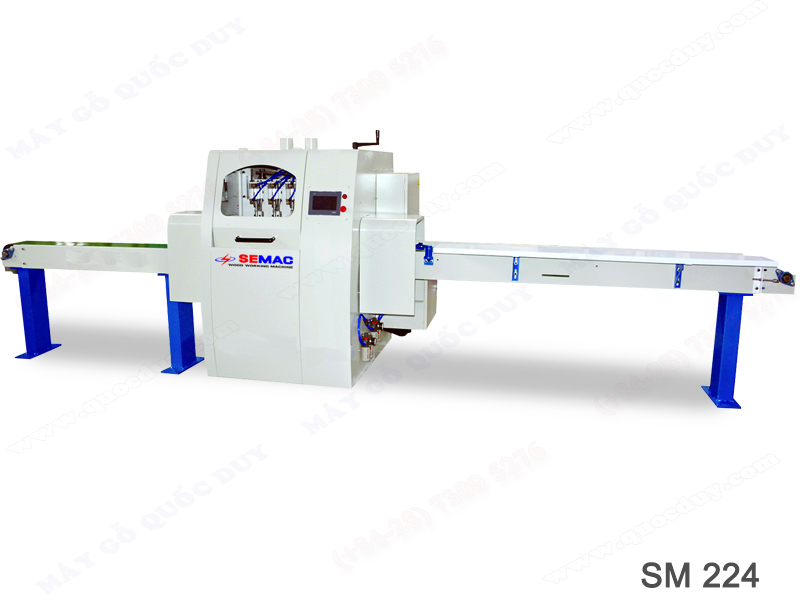

AUTO OPTIMIZING SAW MACHINE
AUTO OPTIMIZING SAW MACHINE
Model: SM 224
| Feature | |
|
Large screen, easy to operate. The machine includes 4 intelligent cutting modes The saw blade lifting system and the workpiece feeding system both use servo drivers, ensuring the cutting process is more stable, accurate, and highly efficient. Using high-precision sensor and linear guide ensures the machine feeds the workpiece at high speed. The machine parts are closed thanks to the cover, ensuring the safety of the operator Save labor, improve output, increase profit |
|
|
Specifications
|
|
|
Working lenght
|
: 350 – 6500 mm
|
|
Max feed speed
|
: 150 m/min
|
|
Saw blade speed
|
: 3700 rpm
|
|
Working size
|
: 150 x 20; 120 x 50 mm
|
|
Spindle power
|
: 3 kw
|
|
Servo power lifting saw blade
|
: 2.9 kw
|
|
Servo motor power to feed the workpiece
|
: 4.4 kw
|
|
Output motor power
|
: 0.37 kw
|
|
Total power
|
: 14.5 kw
|
|
Saw blade lifting frequency
|
: ≤ 0.2 s
|
|
Conveyor Width
|
: 220 mm
|
|
Cutting error
|
: ± 0.5 mm
|
|
Diameter of dust collector
|
: Ø 98 x 2
|
|
Compressed air
|
: 6-8 bar
|
|
Size of saw blade
|
: Ø180 mm
|
|
Number of wheels pressing the upper workpiece
|
: 6 pcs
|
|
Number of bottom feed wheels
|
: 6 pcs
|
|
Machine size
|
: 6000 x 1300 x 1600 mm
|
