TWO-ROW CNC SEAT MORTISING MACHINE

TWO-ROW CNC SEAT MORTISING MACHINE
  • :SDC-2400-4
  • :Semac - Quoc Duy
  • :12 months
  • :Call
  • :

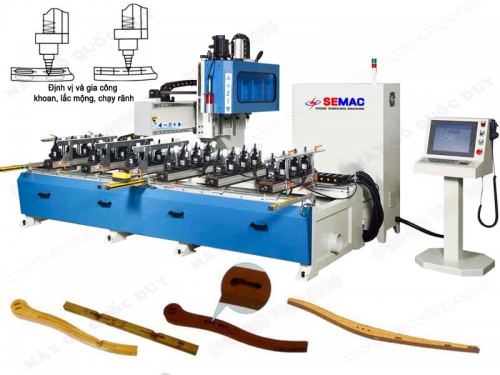

TWO-ROW CNC SEAT MORTISING MACHINE

Model: SDC-SC4-2400

may-lam-mong-am-cnc-sdc-2400
Features

● Used for doing with straight grooves, special grooves and hole grooves.

● Support DXF file be directly input to process complex processing procedure.

● Equipped with the square drill which optimizes the processing of the Chinese Raglan tenon at faster rate.

● Matched with standard safety grating at the left and right station for safety operation.

● Standard interface design of the Windows make it possible to operate the machine without any training.

● Tool setting at tool setting point and machine tuning are easier.

● Two-row cnc seat mortising machine, milling and cutting shoulder continuous milling without lifting knife, convenient adjustment machine.

● Cycle machining at fast speed.

● Perfect design at the very low price.

Specifications
Max.X-axis stroke
: 2400 mm
Max.Y-axis stroke
: 500 mm
Max.Z-axis stroke
: 200 mm
Wheelbase of cutter heads
: 200 mm
Spindle speed
: 18000 r/min
Spindle power
: 2.2kw*4*2
Servo motor
: 1.0kw*3 pcs
Total installed power
: 20.6 kw
Dust suction inlet
: Dia 150mm*2 pcs
Dimensions
: 4400*2100*2200 mm
Weight
: 2500 kgs
Video
