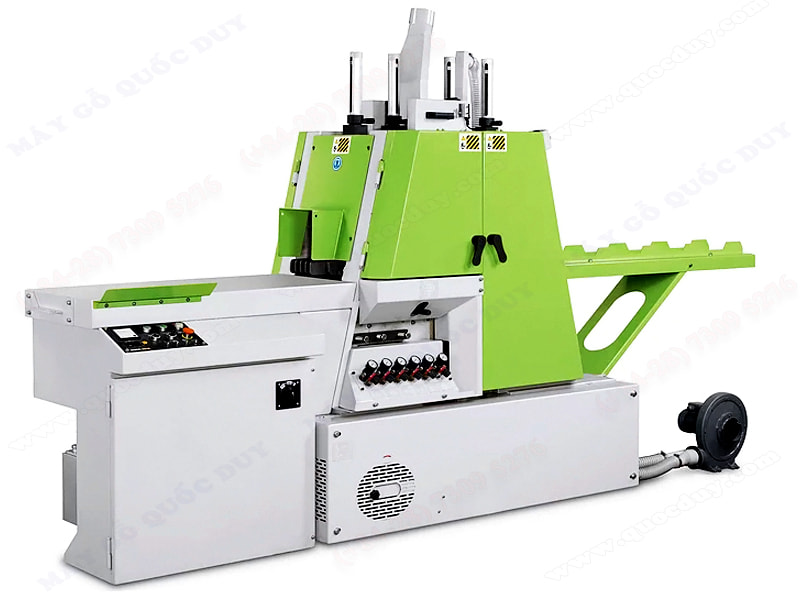

THIN CUTTING FRAME SAW
THIN CUTTING FRAME SAW
Model : MAC 15
 |
 |
 |
| FEATURES | |
|
- Reduced saw path loss for saving wood material and increasing profit.
- Saw frame speed up to 480 times per minute! - Maximum feed speed up to 1.2M per minute! - Saw path loss 1.25~1.4mm for reducing wood material loss while increasing profit. - Suitable for multiple slicing at a time. Suitable for production of composite parquet, venetian blind, air-tight window, pencil, door and guitar, ect. |
|
| SPECIFICATIONS | |
|
Feed height
|
200 mm
|
|
Cutting motor
|
15 HP
|
|
Blower motor
|
2 HP
|
|
Feed motor
|
0.3 – 1.2 m/min
|
|
Rotation speeds
|
520 rpm
|
|
Cutting height
|
60-200 mm
|
|
Cutting width
|
160 mm
|
|
Blade length
|
500 mm
|
|
Kerf loss
|
1.1 ~ 1.2~1.4 mm/min
|
|
Cutting frame
|
210 mm
|
|
Minimum wood length
|
300 mm
|
|
Wood height tolerance
|
+ - 0.5 mm
|
|
Minimum veneer thickness
|
2 mm
|
|
Compressed air required
|
6 bar
|
|
Dust collecting hole
|
5 x Ø100 mm
|
|
Number of saw blades
|
25 pcs
|
|
Digital display
|
10.4 inch
|
|
Net weight
|
2600 kg
|
|
Gross weight
|
3000 kg
|
|
Machine size
|
3400x1300x2300 mm
|
|
Packing size
|
3600x1500x2150 mm
|
