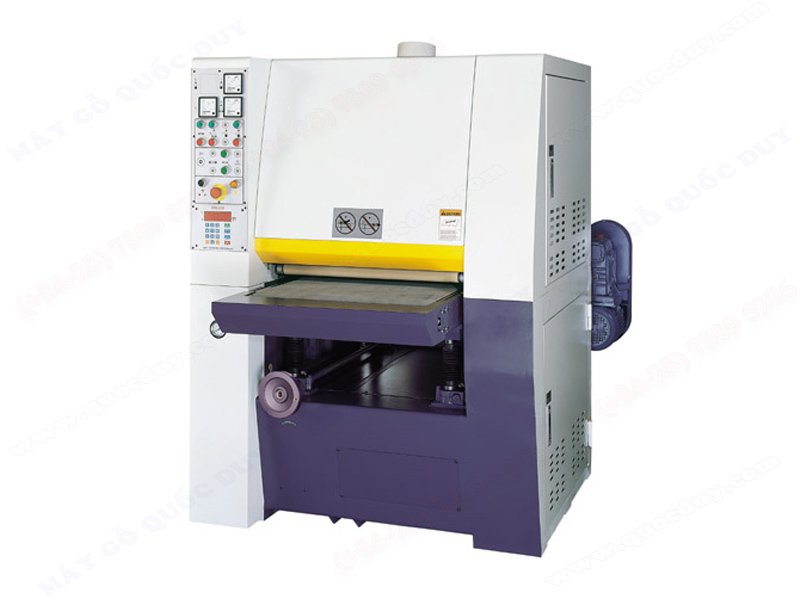

STANDARD WIDE BELT SANDER

STANDARD WIDE BELT SANDER
  • :BKM-25A/BKM-25D/BKM-2560DA
  • :Taiwan
  • :12 months
  • :Call
  • :

STANDARD WIDE BELT SANDER

Model: BKM-25A/BKM-25D/BKM-2560D/BKM-2560ABKM-2560DA

BKM-2560DA

Specification
Model BKM-25A BKM-25D BKM-2560D BKM-2560A BKM-2560DA
Max. working width 610 mm 610 mm 610 mm 610 mm 610 mm
Max. working thickness 127 mm 127 mm 127 mm 127 mm 127 mm
Main motor (standard) 7.5HP 10 HP 10 HP 10 HP 10, 15 HP
Main motor (Optional) 10 HP 15 HP 15 HP 15 HP 20,15 HP
Feed motor 1 HP 1 HP 1 HP 1 HP 2 HP
Table hoist motor ½ HP ½ HP ½ HP ½ HP ½ HP
Feed speed selectable range 6-25 m/min 6-25 m/min 6-25 m/min 6-25 m/min 6-25 m/min
Sanding belt size 635 x 1219 mm 635 x 1219 mm 635 x 1219 mm 635 x 1219 mm 635 x 1219 mm
Working pressure 6 kg/cm² 6 kg/cm² 6 kg/cm² 6 kg/cm² 6 kg/cm²
Machine size 1390 x 1200 x 1600 mm 1390 x 1200 x 1600 mm 1650 x 1350 x 1750 mm 1650 x 1350 x 1750 mm 1950 x 1350 x 1750 mm
Packing size 1480 x 1300 x 1790 mm 1480 x 1300 x 1790 mm 1700x1400x1850 mm 1700x1400x1850 mm 2080 x 1480 x1850 mm
Net weight 620 kgs 620 kgs 700 kgs 750 kgs 1100 kgs
Gross weight 770 kgs 770 kgs 850 kg 900 kgs 1200 kgs
Features

 - The contact roll is rubber coated and dynamically balanced.

 - Photoelectric cell controlled sanding belt tracking.

 - Body activated emergency stop.

 - Variable feed speed of conveyor belt.

 - Automatic machine stop in the event of air failure or sanding belt breakage.

 - Work table computerized table-elevation.

 - Quick replace sanding belt device.
