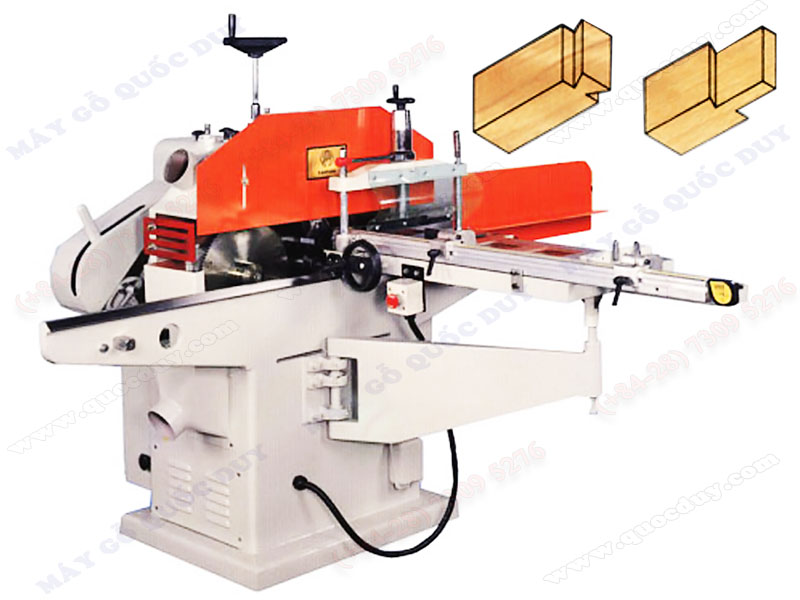

SPINDLE SINGLE END TENONER
Heavy cast iron construction The conveying track is forged by trapezoidal iron The cutter head is in the form of sector which is easy-to-adjust and time-saving
- :ST-120A
- :Taiwan
- :12 month
- :Call
- :
 |  |
SPINDLE SINGLE END TENONER
Model: RL-4
| Specifications | |
|
Maximum length of tenon cut
|
: 120mm
|
|
Maximum width of tenon cut
|
: 370mm
|
|
Maximun thickness of tenon
|
: 112mm
|
|
Maximum tenoning cutterhead size
|
: Þ 105mm(dia.)
|
|
Maximum tenoning cutterhead size
|
: 120mm (long)
|
|
Max. shaping cutter size
|
: Ø 254 mm '
|
|
Max. sawblade diameter
|
: Ø 305 mm
|
|
Spindle diameter Tenon spindle
|
: Ø 25.4
|
|
Spindle diameter Cope spindle
|
: Ø 25.4
|
|
Spindle diameter Saw spindle
|
: Ø 25.4
|
|
Tenon Spindle speed
|
: 3400 RPM
|
|
Cope spindle speed
|
: 3600 RPM
|
|
Sawblade spindle speed
|
: 2800 RPM
|
|
Saw& tenon head motor horsepower
|
: 3 HP
|
|
Cope head motor horsepower
|
: 2 HP
|
