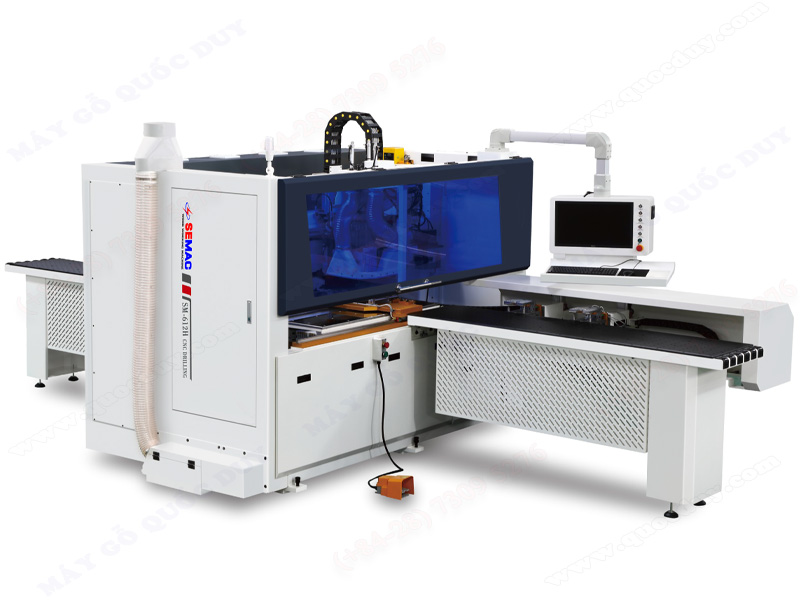

SIX CNC BORING MACHINE
SIX CNC BORING MACHINE
Model: SM-612H
| Specifications | |
|
Processing size range
|
|
|
Min. Width of work-piece
|
: 50 mm
|
|
Max. Width of work-piece
|
: 1200 mm
|
|
Max. Length of work-piece
|
: 2700 mm
|
|
Min. Length of work-piece
|
: 200 mm
|
|
Max. Thickness of work-piece
|
: 48 mm
|
|
Min. Thickness of work-piece
|
: 12 mm
|
|
Working Stoke & Max. Position speed:
|
|
|
X axis
|
: 5000 mm – 130 m/min
|
|
Y axis
|
: 1680 mm - 80 m/min
|
|
Z axis
|
: 90 mm - 30 m/min
|
|
U axis
|
: 5000 mm - 130 m/min
|
|
V axis
|
: 1200 mm - 80 m/min
|
|
W axis
|
: 100mm – 30 m/min
|
|
A axis
|
: 1260mm – 30 m/min
|
|
Drilling unit
|
|
|
Vertical spindles
|
: 12 ( X axis) + 9 ( Y axis)
|
|
Horizontal
|
: 8
|
|
Drilling box motor speed
|
: 3400 rpm
|
|
Drilling motor power
|
: 2.2 kw
|
|
Milling unit
|
|
|
Milling motor power
|
: 3.5 kw x 2
|
|
Spindle speed
|
: 18000 rmp
|
|
Other data
|
|
|
Working table height
|
: 960 mm
|
|
Total power
|
: 19.2 kw
|
|
Voltage
|
: 380V/50Hz
|
|
Air pressure
|
: 0.7-0.8Mpa
|
|
Netweight
|
: 3500kg
|
|
Machine
|
: 5800x2840x2200mm
|
