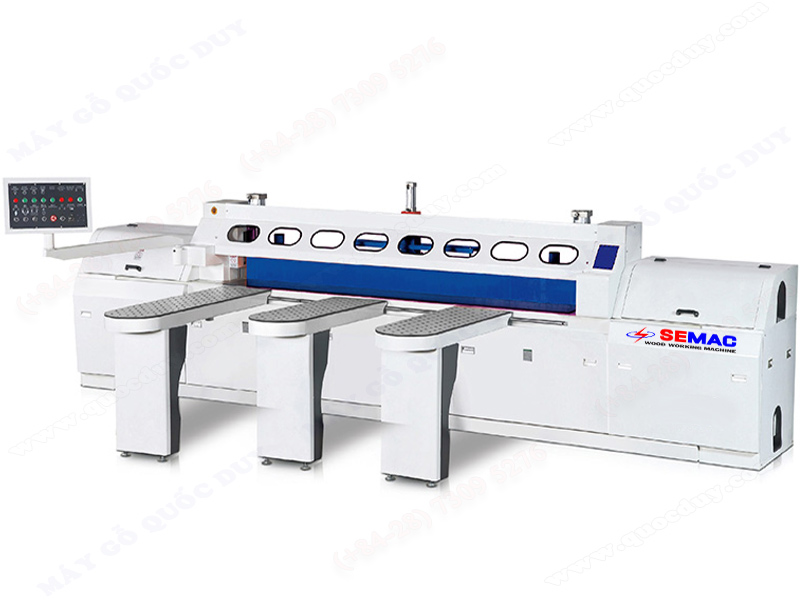

RECIPROCATING PANEL SAW MACHINE
- :SMXK-10
- :SEMAC - Quoc Duy
- :12 Months
- :Call
- :
 |  |
RECIPROCATING PANEL SAW MACHINE
Model: SM – XK10
|
Specifications
|
|
|
Max. cutting length
|
3280mm
|
|
Max. cutting thickness
|
76mm
|
|
Diameter of main saw blade
|
Φ350mm
|
|
Diameter of main saw spindle
|
Φ30mm
|
|
Rotation speed of main saw blade
|
4800r/min
|
|
Diameter of scoring saw blade
|
Φ180mm
|
|
Diameter of scoring saw spindle
|
Φ30mm
|
|
Rotation speed of main saw blade
|
6500rpm
|
|
Forward speed of saw carriage
|
0-37m/min
|
|
Backward speed of saw carriage
|
67m/min
|
|
Drive motor of main saw blade
|
11kw
|
|
Drive motor of saw carriage
|
1.5kw
|
|
Total power consumption
|
14.7kw
|
|
Pneumatic pressure
|
5-7kg/ cm²
|
|
Table height from floor
|
900mm
|
|
Net weight
|
3200kg
|
|
Machine size (LxWxH)
|
5830x3950x1700mm
|
