PU AUTO SPRAYING LINE

Model: SM-1300PU

SM-1300PU

 PU auto spraying line includes:

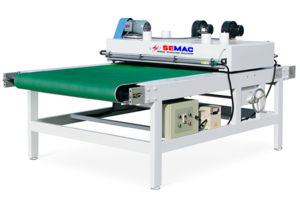

DUST CLEARNER  - Model: SM-DRM1300
DRM-1300
Specification
Max. processing width
1300 mm
Max. processing thickness
125 mm
Feeding speed
0-8 m/min
Total motor power
2.14 Kw
Overall dimesion
3000 x 1910 x 1460 mm
Net weight
850 Kg

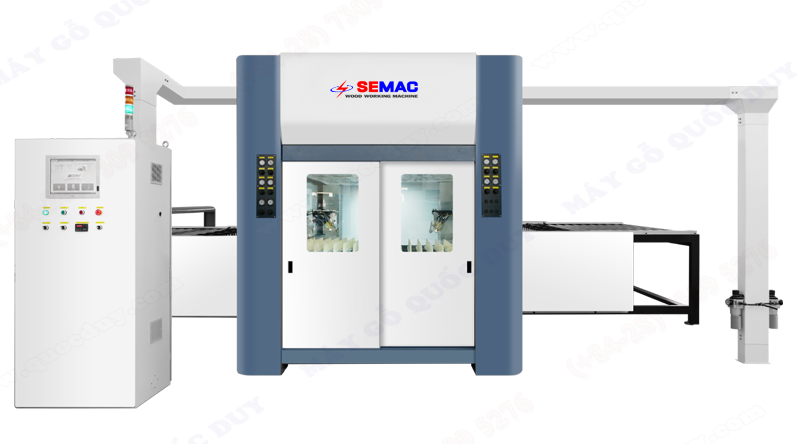

AUTO SPRAYING MACHINE - Model: SM-SPM1300S
SPM1300S
Specification
Max. Spraying width
1300 mm
Max.Thickness of work piece
80 mm
Overall dimension
5600 x 4500 x 2412 mm
Max. Feeding speed
8 m/min
Air pressure
0.5-0.8 Mpa
Total power
9 Kw
Feature

Feeding system: With pin type rod conveyor, no need cleaning system



Spraying system: Reciprocators adopt JAPAN PANASONICA control system. The max. speed can reach 100m/min. there are 2 reciprocators of each machine. Every reciprocator can equip 4 spraying guns and a relevant material-supply pump. The grating scanner at the entrance can measure the width of work piece to make the stroke of guns and turn on/off time more exact. And at the same time the waste is reduced. The grating adopts Italy REER brand



The alarm lamp on the cabinet, when the device is overrun or fault, it will give alarm

Using PLC control system makes it a simple and intuitive instrument to see

Double filtering of the inlet air and closed spraying room make the air cleaner in the spraying room.

Guns and relevant pumps according to the customer’s requirement.

HEATING TUNNEL - Model: SM-PDM1300B
PDM1300B
Specification
Max. processing width
1300 mm
Max. processing thickness
120 mm
Feeding speed
0-6 m/phút
Total power
17 Kw
Machine size
1200 x 1710 x 1600mm
Net weight
1300 Kg
Feature

Transport system

  • Transport belt is made of chain bar that ensures its stable working under high temperature for a long time
  • Feeding speed is adjusted by inverter
  • Closed tunnel can save more energy
  • Side entrance makes the work more convenient

Air cycle system

  • Equipped with air heating and cycle system to fasten the air flow, make temperature even and fasten the volatilization of the paint thinner.
  • Air exhaust will vent the waste gas in time

Heating system

  • IR lamps are equipped in the tunnel

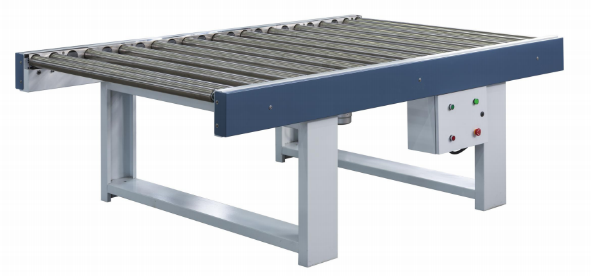

ROLLER TABLE
ban-rulo
Specification
Working width
1300 mm
Power
0.75 Kw
Dimension
2500 x 1960 x 1000 mm
Net weight
300 Kg
