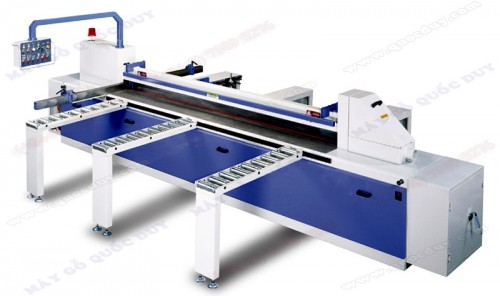

PANEL SAW
PANEL SAW
Model: TPS-8/TPS-10
| Specifications | ||
|
Model
|
TPS-8
|
TPS-10
|
|
Max. length of cut (mm)
|
2600
|
3200
|
|
Max. depth of cut (mm)
|
80
|
|
|
Main sawblade diameter (mm)
|
Ø 355
|
|
|
Arbor diameter (mm)
|
Ø 1”
|
|
|
Main blade arbor speed (r.p.m)
|
4800
|
|
|
Scoring sawblade diameter (mm)
|
Ø 160
|
|
|
Arbor diameter (mm)
|
Ø 1”
|
|
|
Scoring blade arbor speed (r.p.m)
|
6500
|
|
|
Feed forward speed (m/min)
|
12 – 16 – 21 – 26
|
|
|
Return speed (m/min)
|
24 – 32 – 42 – 52
|
|
|
Main sawblade motor (HP)
|
13
|
|
|
Saw carriage drive motor (HP)
|
3
|
|
|
Net weight (kgs)
|
2200
|
2400
|
|
Gross weight (kgs)
|
2600
|
2900
|
|
Machine size (mm)
|
5232x3353x1829
|
5842x3353x1829
|
|
Packing size (mm)
|
5486x1016x1092
|
5893x1016x1600
|
|
Origin : Taiwan
|
||
