OPTIMIZING MOVEABLE MULTIPLE RIP SAW
- :GRS-460M
- :Taiwan
- :12 months
- :Call
- :
 |  |

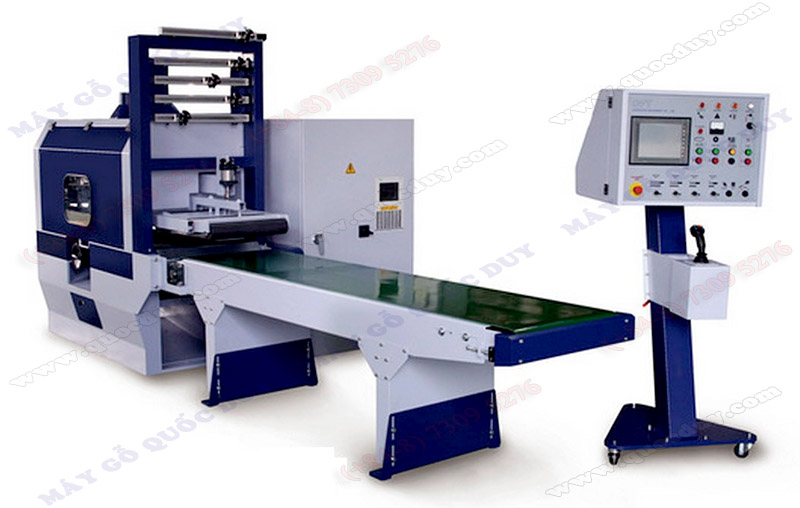

OPTIMIZING MOVEABLE MULTIPLE RIP SAW
MODEL: GRS – 460M
|
+ 1- 4 Moveable sawblades with laser
+ Simple and easy operation
+ Calculating to an optimization result automatically according to operator's setting.
+ Stable and accurate material feed
|
|
 |
 |
| FUNCIONS | |
|
Marking line cutting
Cutting on the setting line. No specific size Maximum setting line is 4 (1 fixed, 4 moveable)
|
 |
||||||
|

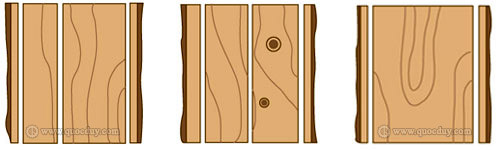

Total width optimized cutting
The operator only needs to set a line for total width, then the computer will perform optimized cutting
2-1 Wider size priority
2-2 Same size priority
2-3 Highest price priority
2-4 Fixed size
2-5 Border fixed size
2-6 Middle fixed size
2-7 Fixed size moved
2-8 Switch arrangement

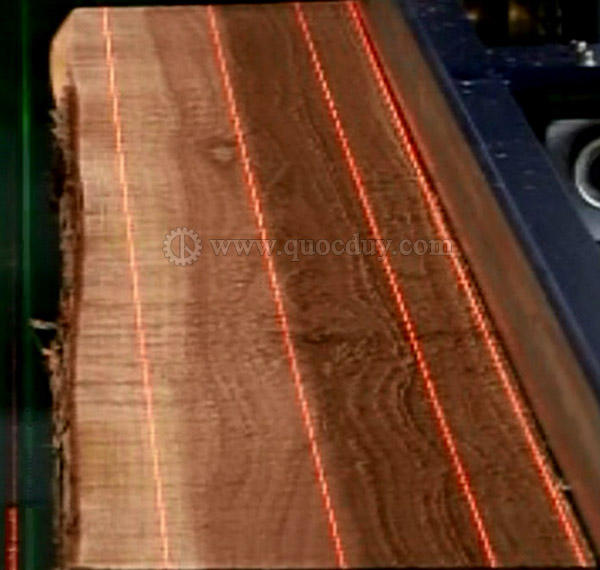

Once total width is set, the computer will select combinations suitable for the total width. The laser unit will indicate the cutting position, the operator should visually check if it is suitable or not. If not, change to next arrangement immediately by simply pressing the button.
|
|
||||||
|

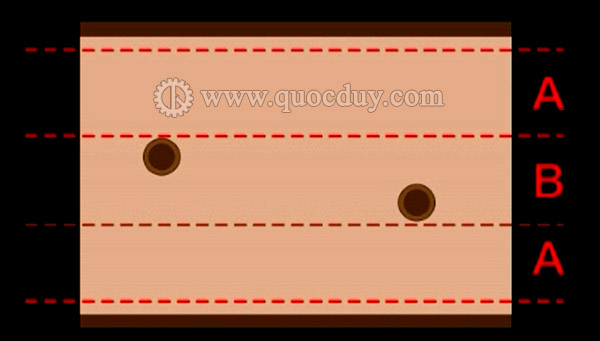

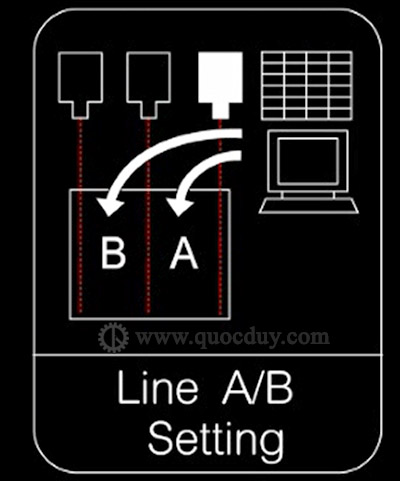

AB line optimized cutting For area set as A lines, size cutting will be located inside of the limes. For area set as B line, size cutting will be located outside of the line. The defective area should be set as B line to avoid cutting on knots. |
 |
||||||
|
|||||||
| SPECIFICATIONS | |
|
Sawblade Diameter
|
Ø405 (16”)/115mm,
Ø 355 (14”)/90mm
|
|
Max. Cutting Thickness
|
Ø 305 (12”)/65mm,
Ø 254 (10”)/40mm
|
|
Min. Cutting Thickness
|
12mm
|
|
Max. Cutting Width
|
460mm
|
|
Max. infeed width
|
785 mm
|
|
Min. Cutting Length
|
690 mm
|
|
Feeding speed
|
10~40m/min
|
|

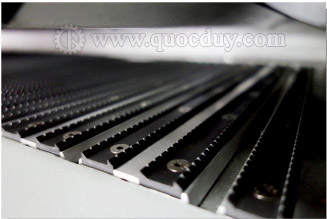

Chain Width
|
490 mm
|
|
Sawblade keyway
|
20mm x 2
|
|
Distance between keyways
|
80 mm
|
|
Sawblade spindle diameter
|
Ø 55mm
|
|
Spindle speed
|
3800 rpm
|
|
Saw drive motor
|
50 HP
|
|
Feed motor
|
3 HP
|
|
Pressure rollers elevation motor
|
1/2 HP
|
|
Saw arbor elevation motor
|
1/4HP
|
|
Saw arbor movable servo motor
|
1 HP x 1~4
|
|
Dust hood outlet diameter
|
Ø 150 mm (6”)*2
|
|
Table height from floor
|
890mm
|
|
Machine size
|
(460) 2000x1810x3115 mm
|
