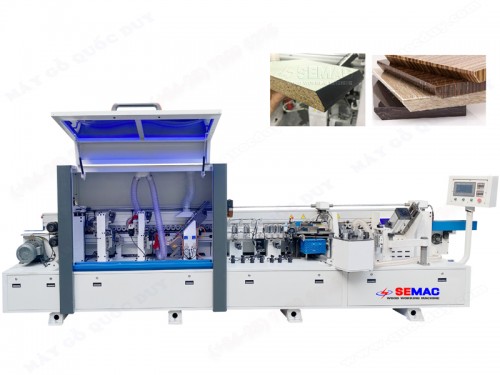

INCLINED EDGE BANDING MACHINE

Model: SMBL 450DT

Specifications
Working thickness	: 25 mm
Feed speed	: 10-12 m/min
Air pressure	: 6 kg
Motor cutting 45°	: 3 kw x 1
Motor end trimming	: 2.4 kw x 2
Milling motor on – below	: 0.75 kw x 2
Polishing motor	: 0.37 kw x 2
Motor feeding	: 2.2 kw
Motor lifting	: 0.18 kw x 1
Voltage	: 380/220V - 50Hz
Bevel angle	: 450
Machine size	: 6700 x 1100 x 1600 mm
Net weight	: 2200 kg
