Four spindle CNC router

Four spindle CNC router
  • Four spindle CNC router comes with a pusher/sweeper that pushes the worked pieces off of the main work table and cleans the surface at the same time, which allows the operator to remove the pieces easily and dramatically reduces down time.

  • :SM-1325A-4
  • :Semac - Quoc Duy
  • :12 months
  • :Call
  • :

FOUR SPINDLE CNC ROUTER

Model: SM-1325A-4

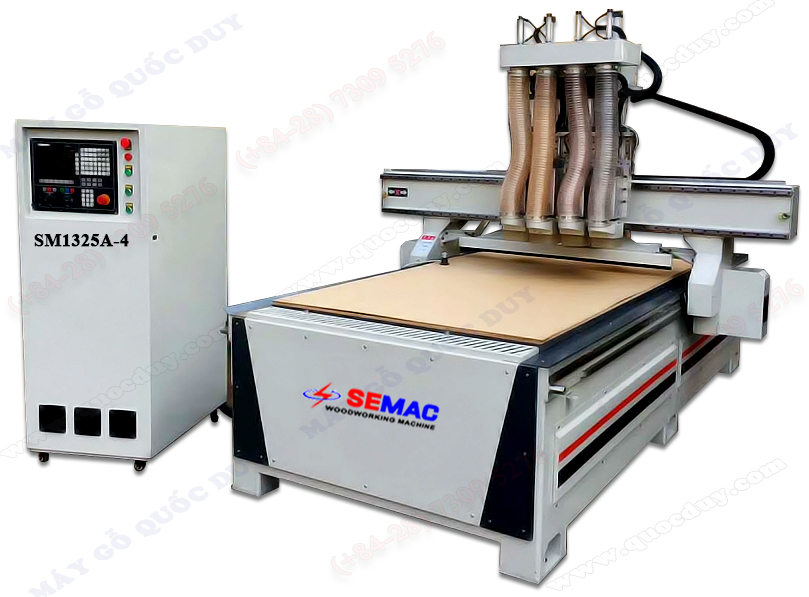

may-cnc-router-4-truc-SM-1325A-4
Specifications
Table size
2500*1300
Spindle power
6kw+4.5kw*3
Servo system
Panasonic servo motor 750W (Z axis with brake function)
Worktable structure
vacuum adsorption table
Main Spindle speed
18000r/min
Max traveling speed
35m/min
Max engraving speed
20m/min
Resolution
±0.05mm
System resolution
±0.001mm
Run command
G code
Vacuum pump power
7.5KW
Product configuration
control system
 NC Studio NK260
spindle
 6kw+4.5kw*3 air cooling high-speed spindle
Rail
 CSK25 Taiwan
Rack
Taiwan
Transmission
X, Y Axis: Germany HERION
 Z-axis Taiwan ball screw
Inverter
7.5KW inverter SIFANG(all imported inner parts)
guide rail
X asix 25#Taiwan HIWIN brand , YZ axis 25# Taiwan
gantry structure
Thick heavier steel structures
Cable
shanghai BOSHI flexible towline cable (with shield)
Electrical components
Schneider  Electric part
machine body
heavy steel structure, welding tempering aging
 strong enough to avoid shape change
