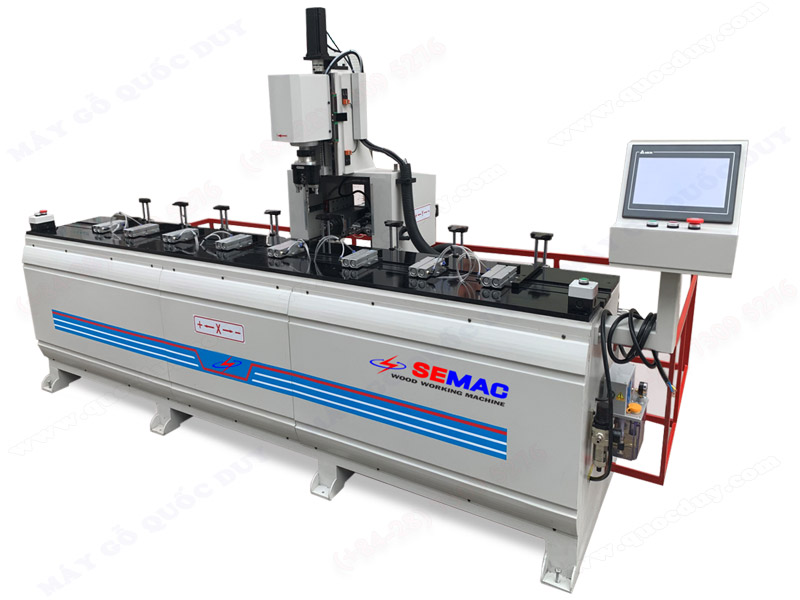

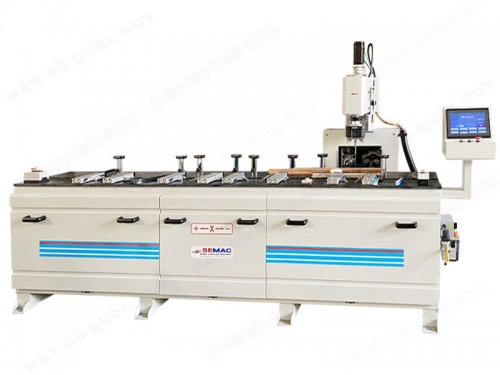

DRILLING MILLING MACHINE TWO DIRECTION
DRILLING MILLING MACHINE TWO DIRECTION
Model: SM-2400D2R1
|
Specifications
|
|
|
Processing length
|
2300 mm
|
|
Maximum working thickness
|
90 mm
|
|
Maximum working width
|
150 mm
|
|
Spindle speed
|
2800 rpm
|
|
Milling speed
|
18000 rpm
|
|
Milling shaft motor
|
3.7 kw
|
|
X axis servo power
|
1 kw
|
|
Y axis servo power
|
0.75 kw
|
|
Z axis servo power
|
0.75 kw
|
|
Machine size
|
3470 x 1500 x 1700 mm
|
|
