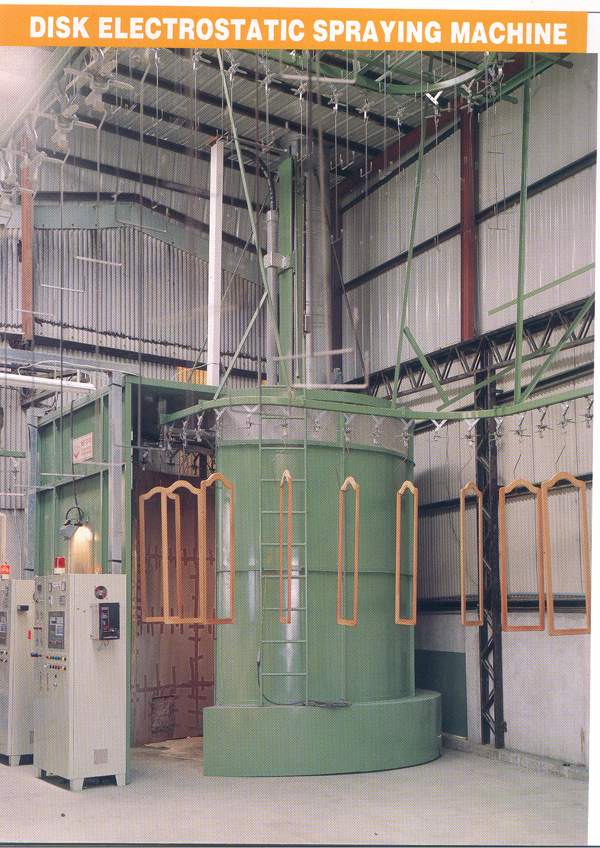

DISK ELECTROSTATIC SPRAYING MACHINE

Overview

- Electrostatic coating system automatic plate is a method most advanced coating technology available today. To save processing time , materials and does not depend on skilled workers painting process - By means of a high pressure area and in the paint make paint stick to the product without causing waste to flow outside. - Additionally , the processor of Siemens - Germany allows programming of 10 products on the photosensitive screen injection speed , flow coating, the programming power

Structure

- Omega picture frame design increases the bag sticking up paint products for powder coating system. Structural galvanized iron sheet 2 mm thickness, 3.6 mm diameter painted room. Shaped tower rising angled paint the beauty of the system. - Structural loose form for easy installation - Paint room paint room include Omega - Processor PLC - Siemens ( Germany ): translational nozzle system is PLC controlled paint. Program activities provided by Siemens, is a complete program coordination of paint line operations. Especially processor, process the information on absolute safety regime for operators. The program is handled by Siemens PLC quick and accurate - Ministry of high-voltage supply is imported from Taiwan - High pressure systems create precision aligned to increase traction of the product reduces paint wastage paint. High-voltage system voltage adjustable from 0 - 90KV, help fit each product with different resistors - Touch Screen Monitor - Prownin ( Japan ): The system allows programming of 10 products. The programming is easy, fast and convenient for users with photosensitive screen system in Japan - Central control cabinet for the operator convenience. At the control panel, the operator can control the entire system - The entire engine are all controlled by the inverter ( inverter ), multiple functions, precision and safety.
