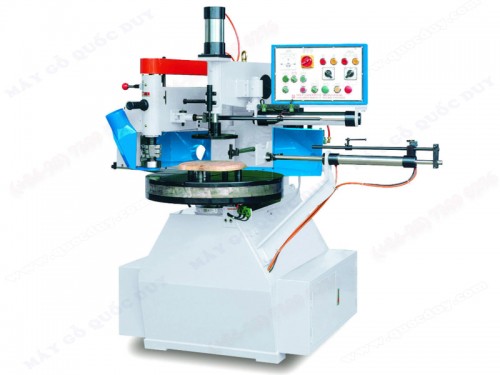

COPY SHAPING MACHINE
COPY SHAPING MACHINE LH-28/LH-40 are designed for the shaping and profiling of medium and small workpieces. The unit is easy and convenient to operate. Optional auto copying seat & feeding seat are available for auto. production
- :LH-28/LH-40
- :Taiwan
- :12 month
- :Call
- :
 |  |
COPY SHAPING MACHINE
Model: LH-28/LH-40
|
Specifications
|
||
|
MODEL
|
LH-28
|
LH- 40
|
|
Cutting capacity
|
76 x 711 mm
|
76 x 1016 mm
|
|
Max. cutting length to width ratio
|
318 x 635 mm
|
381 x 914 mm
|
|
Table diameter
|
Ø 457 mm
|
Ø 686 mm
|
|
Table speed
|
1.5-6 vòng/phút
|
1.5- 6 vòng / phút
|
|
Spindle speed
|
9000 vòng /phút
|
9000 vòng /phút
|
|
Spindle diameter
|
Ø 30 mm
|
Ø 30 mm
|
|
Spindle height
|
140 mm
|
140 mm
|
|
Max. cutter diameter
|
Ø 200 mm
|
Ø 200 mm
|
|
Follower wheel diameter
|
Ø 100 mm
|
Ø 100 mm
|
|
Table drive motor
|
2 HP
|
2 HP
|
|
Cutter head drive motor
|
7.5 HP
|
7.5 HP
|
|
Net weight
|
760 kg
|
890 kg
|
|
Gross weight
|
960 kg
|
1140 kg
|
|
Machine size
|
1250x1250x1750 mm
|
1425x1425x1750 mm
|
|
Packing size
|
1423x1334x2220 mm
|
1610x1470x2220 mm
|
|
