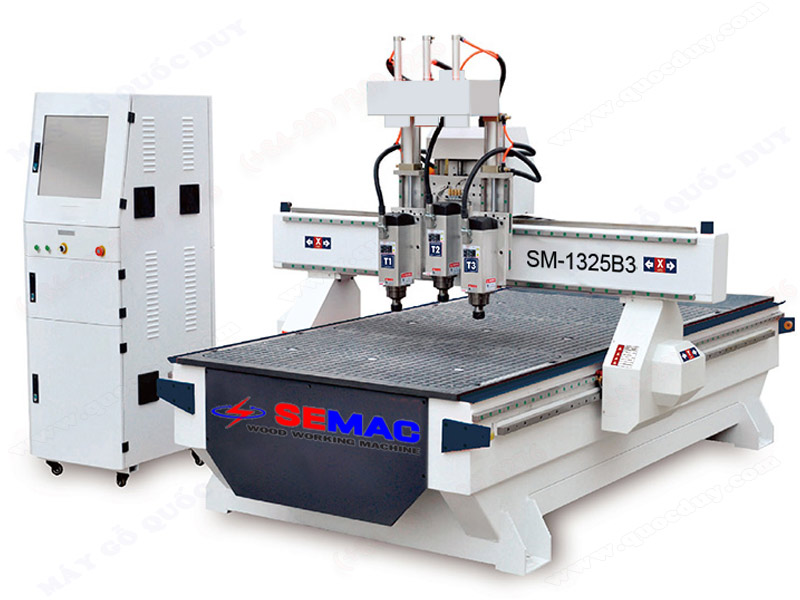

CNC ROUTER MACHINE
- :SM-1325B3
- :Semac- Quoc Duy
- :12 month
- :Call
- :
 |  |
CNC ROUTER MACHINE
Model: SM-1325B3
| Specification | |
|
Workable processing
|
: 1300 x 2500 x 200 mm
|
|
Working size
|
: 1220 x 2400 mm
|
|
X axis stroke
|
: 1300mm
|
|
Y axis stroke
|
: 2500mm
|
|
Z axis stroke
|
: 220mm
|
|
Resolutions
|
: ± 0.05 mm
|
|
System Resolution
|
: ± 0.001 MM
|
|
Repeat Positioning Accuracy
|
: ± 0.03 mm
|
|
Worktable Structure
|
: Vacuum worktable
|
|
Shaft Drive Mode
|
: X/Y axis rack and pinion drive Z- axis screw drive
|
|
Max Travel Speed
|
: 35m/min
|
|
Max Working Speed
|
: 20m/min
|
|
Spindle Power
|
: 4.5kw*3
|
|
Spindle Speed
|
: 6000-24000r/min
|
|
Operating Voltage
|
: 380V/50HZ
|
|
Run Command
|
: G code
|
|
Vacuum pump
|
: 7.5 kw
|
