CNC DOUBLE END TENONER MACHINE
cnc double end tenoner machine SM-ST215 is mainly used for straight material processing of square mortise, round mortise, waist round mortise, etc. It is a high-quality CNC product developed by our company for the field of solid wood furniture and new Chinese furniture...
- :SM-ST2215
- :SEMAC - Quoc Duy
- :12 Months
- :Call
- :
 |  |

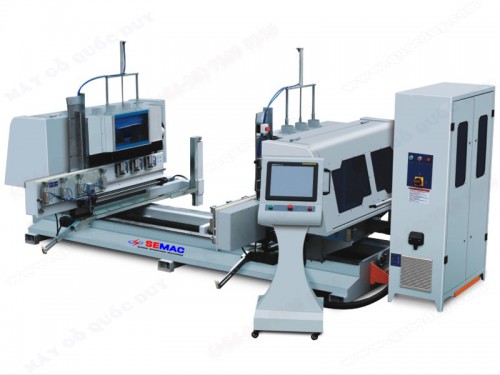

CNC DOUBLE END TENONER MACHINE
Model: SM-ST2215
|
Feed three workpieces at a time, and machine both ends at the same time. Automatic circulation in and out of the discharge device, which can adapt to the production efficiency of the continuous processing operation of the production line. Servo control adjusts the spacing of the crucibles for easy and accurate operation. CNC system for man-machine dialogue, menu mode selection, simple operation, parameterized input adjustment is convenient and quick Workers are away |
|
|
Specifications
|
|
|
Total power
|
41kw
|
|
Weight
|
2200kg
|
|
Spindle speed
|
12000r/min
|
|
Max. Length of work-piece
|
140 mm
|
|
Spindle Power
|
5.5kw x 6
|
|
Working Width
|
140mm
|
|
Working Thickness
|
60mm
|
|
Working Pressure
|
0.6Mpa
|
|
Motor X
|
1.5kw x 2
|
|
Motor Z
|
1.0kw x 2
|
|
Motor A/Y1
|
0.75kw x 2
|
|
Motor Y2
|
1.0kw
|
|
Voltage
|
380V
|
|
Machine size
|
4600 x 2500 x 2000mm
|
|
