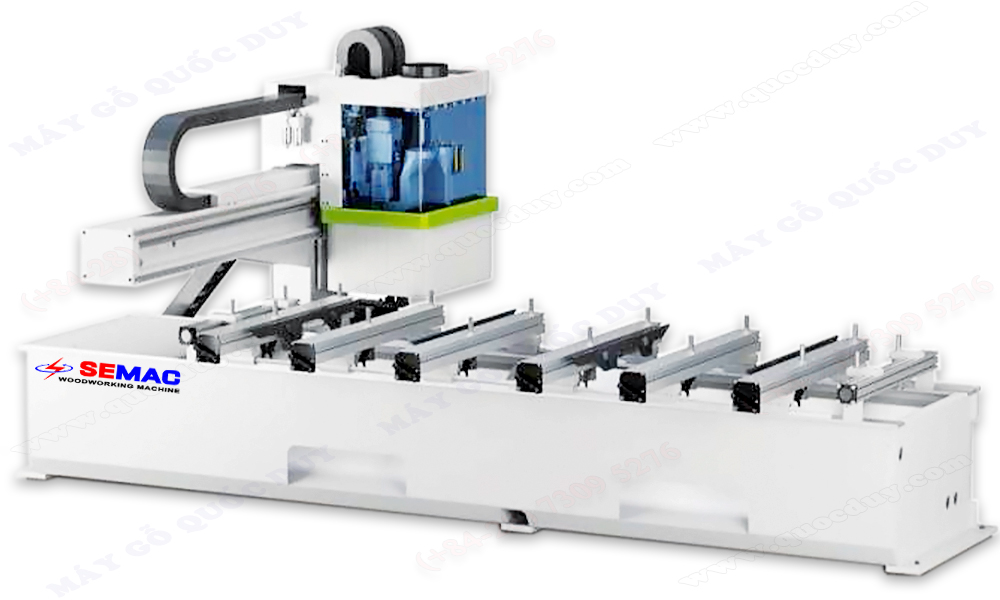

CNC BORING- ROUTING AND MACHINE CENTER
CNC BORING- ROUTING AND MACHINE CENTER
Model: SM-3313
| SPECIFICATIONS | |
|
Max. working size
|
3250 x 1250 x 100mm
|
|
Vectorial speed X-Y axis
|
100m/min
|
|
Vacuum pump
|
160m3/h
|
|
Vectorial spindles
|
X-9+Y-5
3000-6000 rpm
|
|
Horizontal spindles
|
X -2 x 2 + Y - 1 x 2
3000-6000 rpm
|
|
Intergrated blade in X
|
3000-6000 rpm
|
|
Motor power
|
9.5kW
|
|
Max. speed
|
24000 vòng
|
|
Tool changer
|
8pcs
|
|
Compressed air consumption
|
450 NL /min
|
|
Exhaust air consumption
|
2000m3/h
|
|
Exhaust air speed
|
30m/giây
|
|
Installed motor power
|
26kW
|
|
Exhaust hood diameter
|
ø250mm
|
|
Net weight
|
3000kg
|
