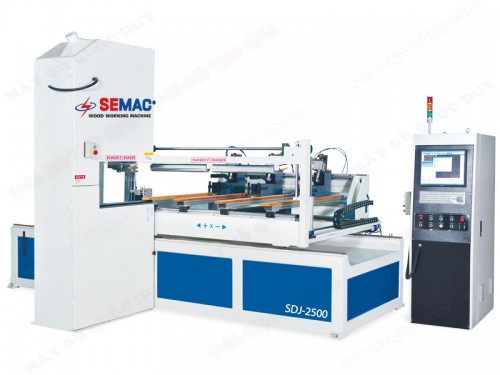

CNC BAND SAW MACHINE
CNC BAND SAW MACHINE
Model: SDJ-2500
|
Specifications
|
|
|
Travel axis
|
3 (X,Y,Z)
|
|
Blade dimension
|
5340 x 16 x 0.8 mm
|
|
Saw wheel diameter
|
760 mm
|
|
Saw blade rotation angle
|
+ 90 /- 90 °
|
|
Spindle power
|
7.5 HP
|
|
Maximum processing speed
|
0 -20 m / min
|
|
Maximum Feeding speed
|
40 m / min
|
|
Processing highly
|
150 mm
|
|
Motor servo X-axis
|
3.0 Kw
|
|
Motor servo Y-axis
|
1.0 Kw
|
|
Motor servo Z-axis
|
0.4 kw x 2
|
|
Max. working size
|
2500 x 1250 mm
|
|
Minimum turning radius
|
R=60 mm
|
|
Working air pressure
|
6 kg/cm3
|
|
Computer dimensions
|
1050 x 550 x 1800 mm
|
|
Machine size
|
5900 x 2200 x 1700 mm
|
|
Packing size
|
1000 x 900 x 2500 mm
|
|
