AUTOMATIC SIX-SIDES CNC DRILLING MACHINE

Model: SM-690

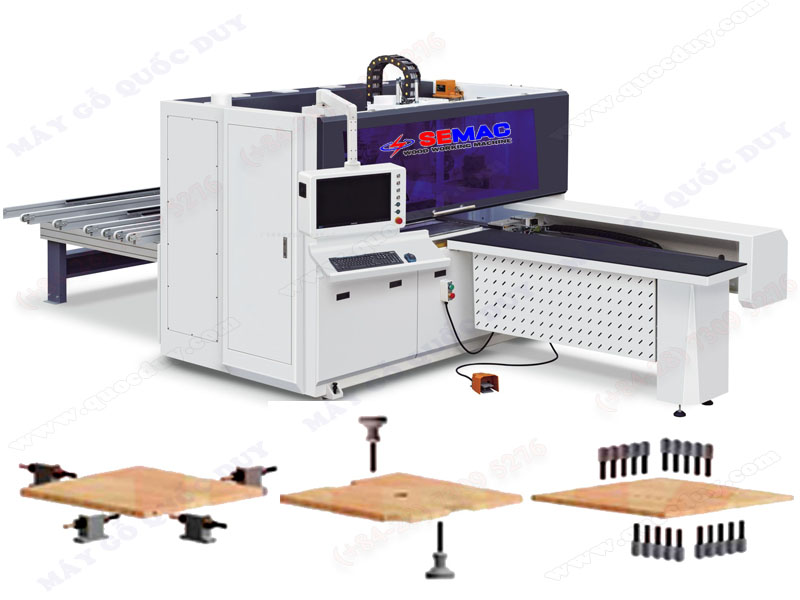

may-khoan-cnc-6-mat-SM-690
Min. Width of work-piece
50 mm
Max. Width of work-piece
1200 mm
Max. Length of work-piece
2700 mm
Min. Length of work-piece
200 mm
Max. Thickness of work-piece
50 mm
Min. Thickness of work-piece
12 mm
X axis
 5000 mm 85m/min
Y axis
 1380 mm -  60m/min
Z axis
 82 mm -20m/min
U axis
 5000 mm - 85m/min
V axis
 1100 mm 60m/min
W axis
 118 mm 20m/min
A axis
960 mm 35m/min
Vertical spindles
6 ( X axis) + 7( Y axis)
Horizontal
4 ( X axis) + 4 ( Y axis)
Drilling box motor speed
3400 RPM
Milling motor power
2.2 kw / 3.7 kw
Working table height
1020 mm
Total power
17 kw
Net Weight
3000kg
Machine size
2540 x 5670 x 2200 mm
