Automatic Paint Door Machine

Automatic Paint Door Machine
  • Suitable for different types board-type furniture, office furniture, cabinet door, bathroom cabinet, show cabinet, decoration board, faux marbles, plastic board, plastic board, aluminum composite panel, glass, stainless steel, hi-fi, sets, hardware, TV sets. etc.

  • :FXF250P
  • :Taiwan
  • :12 month
  • :Call
  • :

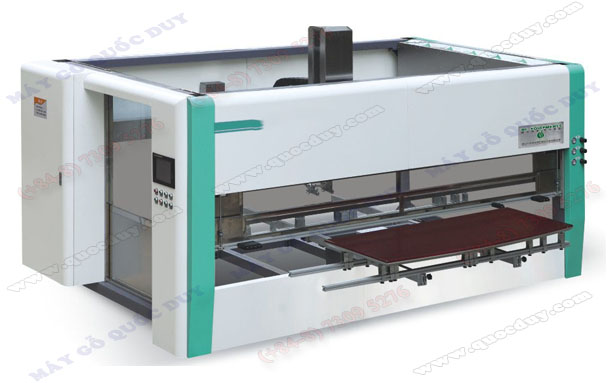

Automatic Paint Door Machine

Model: FXF250P

may-son-cua-tu-dong-FXF250P
Feature
The pneumatic rotary double-positioning feeding enables the machine to paint the board’s five sides once time which saves working procedures, improve efficiency and ensure the painting effect.
FXF250P.2
Only two ordinary workers can finish the whole process. The capacity is 90-120㎡/hour.
Touching type computer digital operation machine or automatic detection machine are provided. Both of them are easy to learn
FXF250P.1
Controlling the spray gun’s moving route through the computer to imitate manual painting, which ensures smooth painted surface and reaches the corners being painted.
The machine is easy to operated and not rely on painting technique. It shortens the Production cycle, reduces paint cost and labor cost.
Specifications
Dimensions
4.5 x 2.4 x 2.5M
The weight of the machine
2200kg
Maximum machining lengt
2.5M
Maximum working width
1.2M
Min working width
0.15M
Gun movement speed
00~1800MM/S
Gun caliber
0.8/1.0/1.3
Servo motor ( Total )
4KW
Air pressure
0.6MPA
Types of paint
PE, PC, PU, UC, XU, UV
Air consumptions
700-900L/Min
The amount of paint used
80-300g/m2
Using the power
380V   50Hz
Dimensions
4.5 x 2.4 x 2.5M

FXF250P.3
