AUTOMATIC INCLINATION EDGE BANDING MACHINE EVA & PUR
- :PRO ARC 2
- :Semac - Quoc Duy
- :12 months
- :Call
- :
 |  |

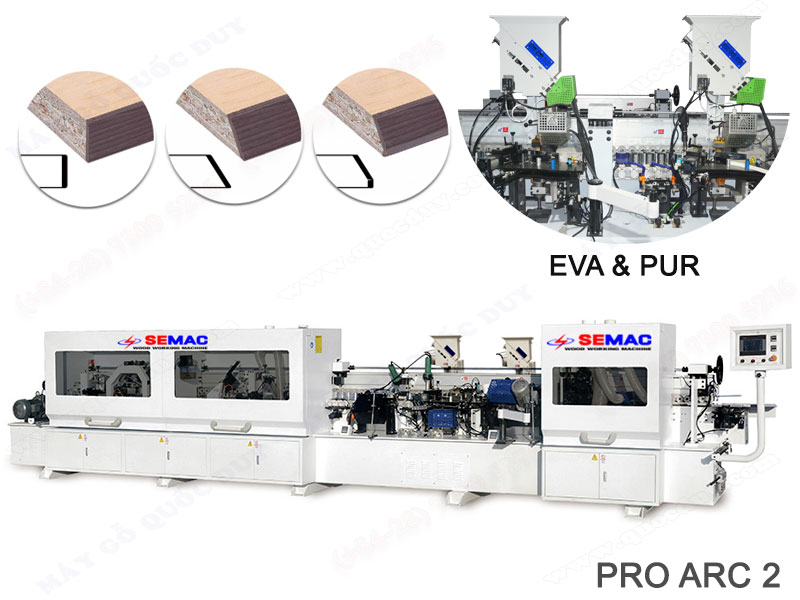

AUTOMATIC INCLINATION EDGE BANDING MACHINE EVA & PUR
Model: PRO ARC 2
|
Machine Functions
|
|
|
Pre-milling at straight surface
Pre-milling at inclination surface
Panel pre-heating
Grooving on tape
Gluing at inclination surface 1 (option PUR)
Gluing ports at straight surface 2
Edge banding tape pre-heating
Tape pressuring
End cutting
Rough trimming
Fine trimming
Corner rounding
Scraping
Cleaning
Flat scraping
Buffing
|
|
|
Specifications
|
|
|
Pre-milling motor power
|
: 1.8 kw x 2
|
|
Premilling motor for L shape
|
: 4 kw
|
|
Gluing motor power
|
: 0.75 kw x 2
|
|
Heating power
|
: 1.5 kw
|
|
Ending trimming motor power
|
: 0.37 kw x 2
|
|
Rough trimming motor power
|
: 0.75 kw x 2
|
|
Fine trimming motor power
|
: 0.75 kw x 2
|
|
Corner rounding motor power
|
: 0.37 kw x 2
|
|
Buffing motor power
|
: 0.37 kw x 2
|
|
Belt motor power
|
: 3.7 kw
|
|
Working speed
|
: 12-20 m/min
|
|
Max edge height
|
: 60 mm
|
|
Chain feeding top pressure
|
: 5.5 kw
|
|
Heating fan
|
: 1 heating fan
|
|
Panel thickness
|
: 10-50 mm
|
|
Edge banding tape thickness
|
: 0.4-3 mm
|
|
Working air pressure
|
: 0.7 Mpa
|
|
Net weight
|
: 3000 kg
|
|
Machine size
|
: 9400 x 900 x 1600 mm
|
PUR glue machine (Option)
| Specifications | |
|
Installation power
|
: AC220V/50HZ
|
|
Heating capacity
|
: 7.5KW
|
|
Diameter in rubber tube
|
: 280 mm
|
|
Spin speed
|
: 60 rpm
|
|
Diameter in rubber tube
|
: φ8 mm
|
|
Air pressure
|
: 0.4～0.8MPa
|
|
Control the system
|
: PLC + Touch screen
|
|
Temperature control range
|
: The normal temperature -180℃
|
|
Heating time
|
: 25 min
|
|
Pressure spray glue
|
: ≤50 kg/cm2
|
|
Heat retention function
|
: No
|
|
Notice of overheating
|
: Yes
|
|
Notice where the temperature is too low
|
: Yes
|
|
Notice no longer glue
|
: Yes
|
|
Journey roller
|
: Max 600mm
|
|
Net weight
|
: 250 kg
|
|
Machine size
|
: 1040×550×1250 mm
|
