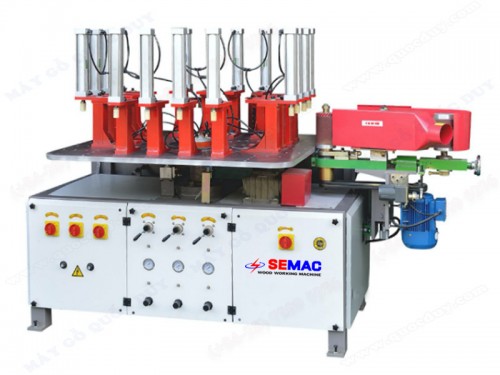

AUTOMATIC ENGRAVING AND COPYING MACHINE
AUTOMATIC ENGRAVING AND COPYING MACHINE
Model: SM-1500S
|
Specification
|
|
| Working lenght |
100 - 1500 mm
|
|
Max. working thickness
|
150 mm
|
|
Working table size
|
1200 x 1200mm
|
|
Spindle diameter
|
Ø 35mm
|
|
Spindle speed
|
9000 rpm
|
|
Working table speed
|
1.5 - 6 r/min
|
|
Left motor shaper cutter
|
5.5 Kw
|
|
Right motor shaper cutter
|
4 Kw
|
|

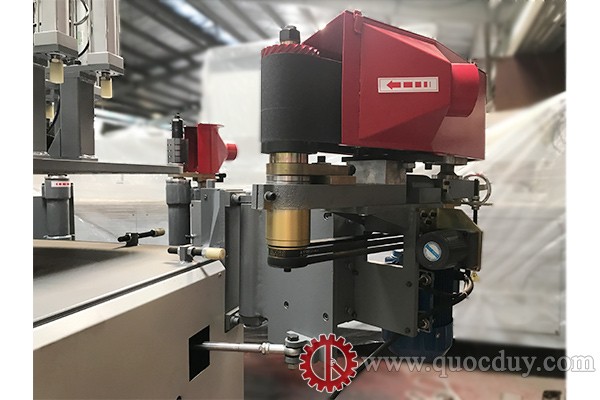

Sanding shaft motor
|
1.1 Kw
|
|
Working table driving motor power
|
1.5 Kw
|
|
Air pressure
|
0.6 - 0.8 Mpa
|
|
Machine size
|
1900 x 1500 x 600 mm
|
|
Net weight
|
1170 Kg
|
