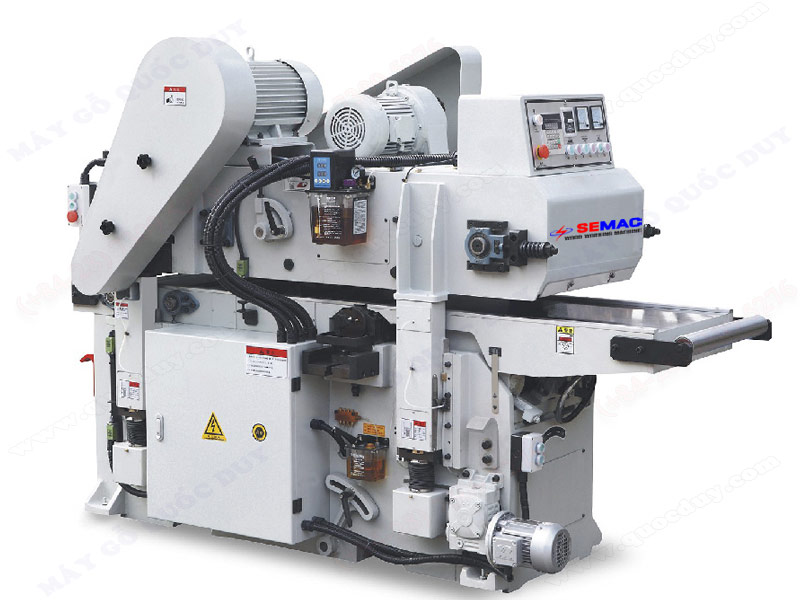

AUTOMATIC HEAVY DUAL-SIDED PLANING MACHINE

Model: SM-635ARD



Features
- Cast iron bed with good shock absorption and stability is processed by pentahedral processing center. The lifting column is made of turbine scroll, which provides a good foundation for tool shaft and feeding. - Standard carbide helical shaft, high-precision imported bearings for the machine to provide a very healthy heart; - The use of crawler-type elastic pressure claw (with lifting function) according to the thickness of the wood, the degree of bending choose elastic pressure claw feeding distance, the workpiece processing accuracy is greatly improved, feeding powerful; - Machine tool knife axis and the pressure roller and the smooth feeding mechanism, equipped with manual fine-tuning and motorized mechanism, so that positioning fast and accurate. Pressure planing part of the upper and lower feed roller linkage feeding, strong thrust balance; - The use of imported electrical components, so that the whole control sensitive and safe; - Taiwan imported products equipped with digital display device, the operating panel can be directly on the processing thickness, accuracy up to 0.1mm, standard speed control feeding; - Countertops hard chrome plated special treatment, wear-resistant, smooth.
Specifications
Max wording width	: 635mm
Max wording thickness	: 200mm
Min wording thickness	: 10mm
Minwording length	: 310mm
Number of planing blades	: 100pcs
Tool shaft diameter	: 126
Knife shaft speed	: 5000RPM
Variable frequency feed speed	: 8-18m/ min
Hút bụi	: trên 127mm/ dưới 152mm
Workbench area	: 686x2591mm
Upper shaft motor	: 20HP
Lower shaft motor	: 15HP
Feed motor	: 3HP
Mechanical dimensions	: 2672x1145x1700mm
Mechanical packing size	: 2772x1280x1850mm
Mechanical packing weight	: 3500kg
